Wiper Control Box With Switch 12/24
Wiper Control Box With Switch 12/24
SAW-39844
$513.90 $540.95
$27.05 off RRP of $540.95
Product Overview

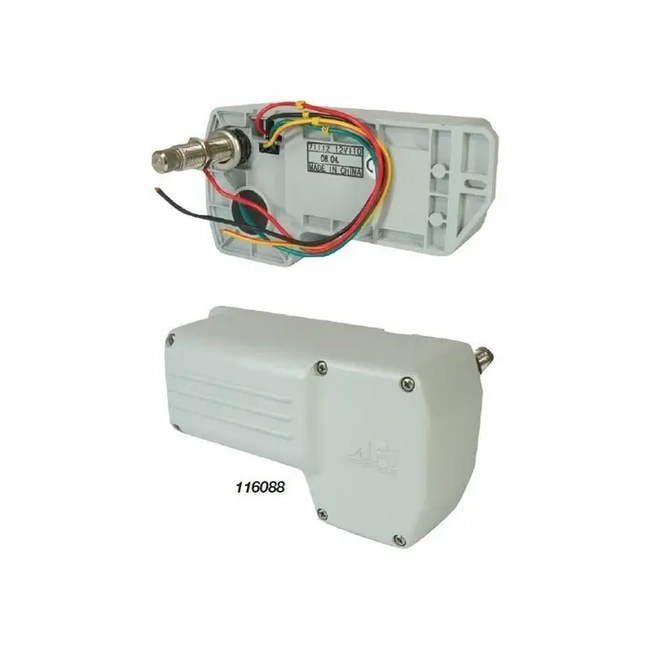

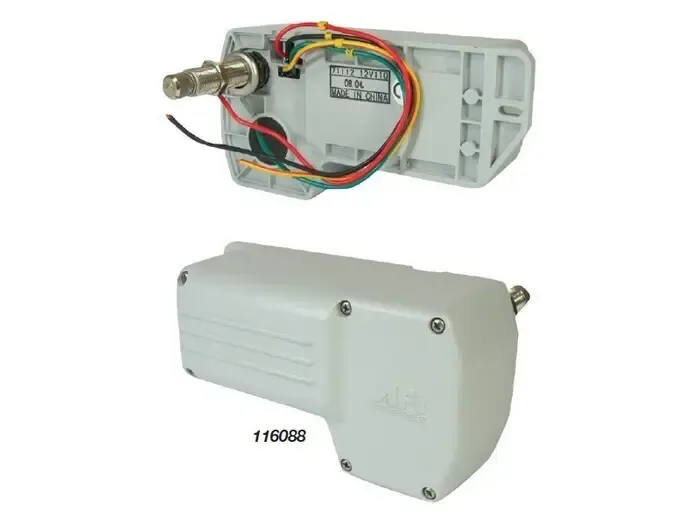

Marinco® AFI 1.5 Waterproof Wiper Motors
Fully sealed powder coated aluminium waterproof base and housing, powers up to 500mm sweeps. For suitable wiper arm options see page 262.
Features:
- Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
- Factory pre set sweep angles of 110°, with easy adjustment to 45°, 60° or 80°
- Coast to park with adjustable right or left self parking
- M16 mm diameter shaft (5/8")
- Two speed motor
- Sealed 150mm, 16AWG wire leads, with RF shielded circuitry
- Stall torque: 125 kgf/cm; 12.3 Nm (109 in - lbs)
- Stall current: 11.5-13 amps at 12V
- No load current: 0.5-1.2 amps at 12V
- Available in 23mm (12V only) and 50mm effective shaft lengths
- 3 year warranty
BLA Code Volts Motor Length mm Motor Depth mm Motor Width mm Thread Shaft Length mm Overall Shaft Length mm
116088 12 197 70.28 101 50 x 16 65
| SKU | BLA-116088 |
| Brand | Marinco |
