Product Overview

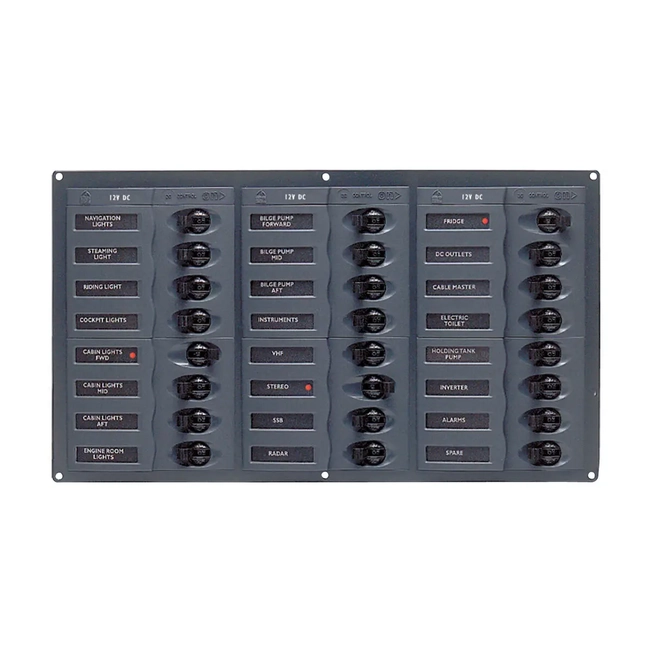

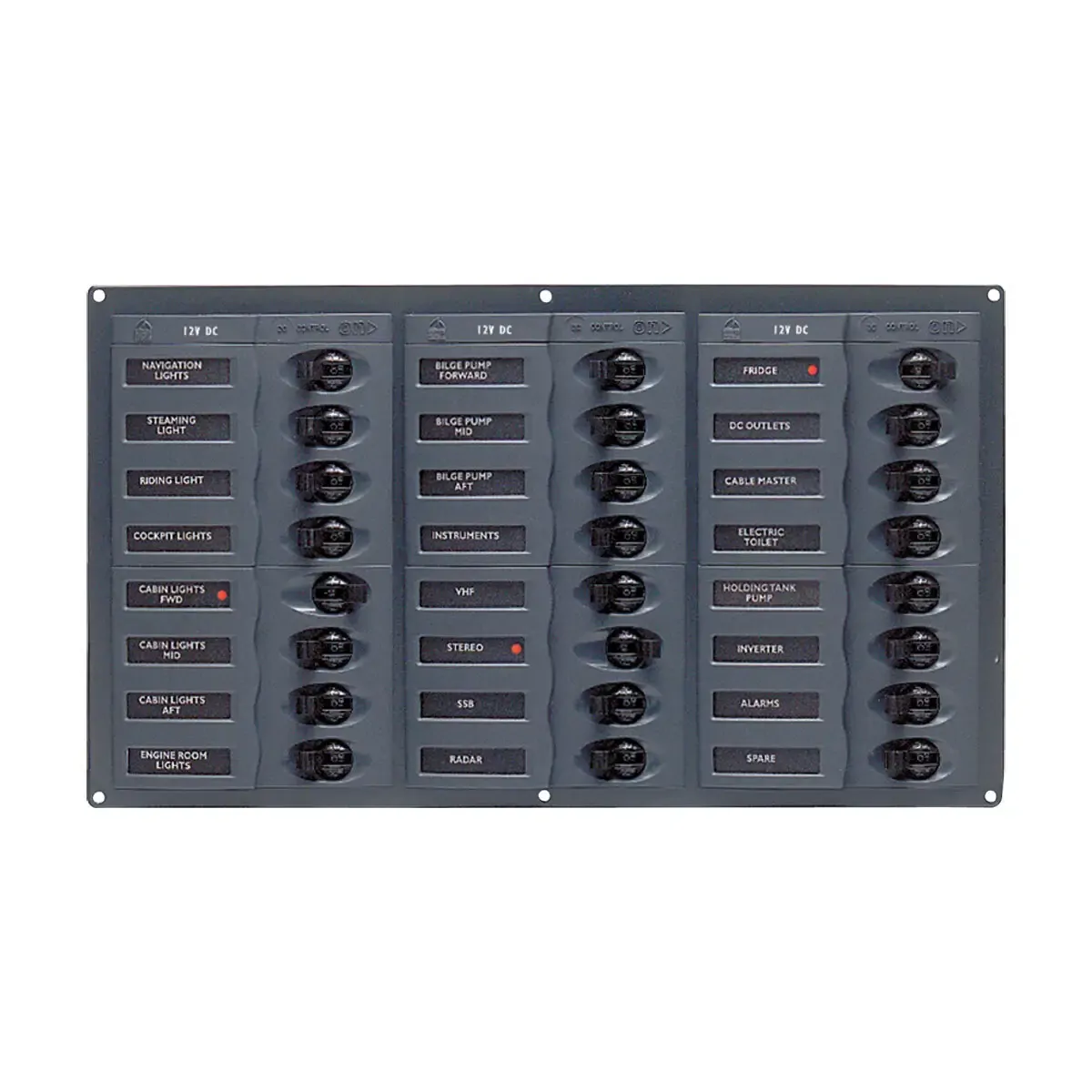

BEP 'Contour' Circuit Breaker Panels - No Meters Circuit breaker panels with stylish curved front facia incorporating recesses for circuit breaker toggles preventing them from being switched on accidentally. For replacement circuit breakers refer page 190. For other label options refer pages 156 and 157. Features: - Durable grey powder coated marine grade aluminium base panel - Marine quality, magnetic, hydraulic, UL listed trip free breakers - Backlit labels supplied, refer page 156 - Suitable size negative busbar supplied, refer page 183 - Red LED indication for circuits ?on? - Green LED back lighting for meters and labels - Double pole configurations available for survey or additional safety With the flexibility of the 'Contour' four way plastic modules, BEP can build panels to custom requirements if requested. BLA Code 113176 Circuits 24 Overall SizeW x H mm 351 x 200 Cut Out Size W x H mm 331 x 180 Intrusion mm 65 Mount Screws Gauge 6 r/h Power Volt 12-24 Label Sheet 1, 2, 3 Circuit Breakers: 5 amp 5 10 amp 8 15 amp 8 20 amp 1 25 amp 1 30 amp 1 Drop resistors required for LEDs in 24 volt installations: 113461 Drop resistor BEP 8 way suits 113142 & 113144 113462 Drop resistor BEP 12 way suits 113151, 113152 & 113153 113463 Drop resistor BEP 16 way suits 113160 113465 Drop resistor BEP 24 way suits 113175 & 113176

SKU BLA-113176
Brand BEP
