Product Overview

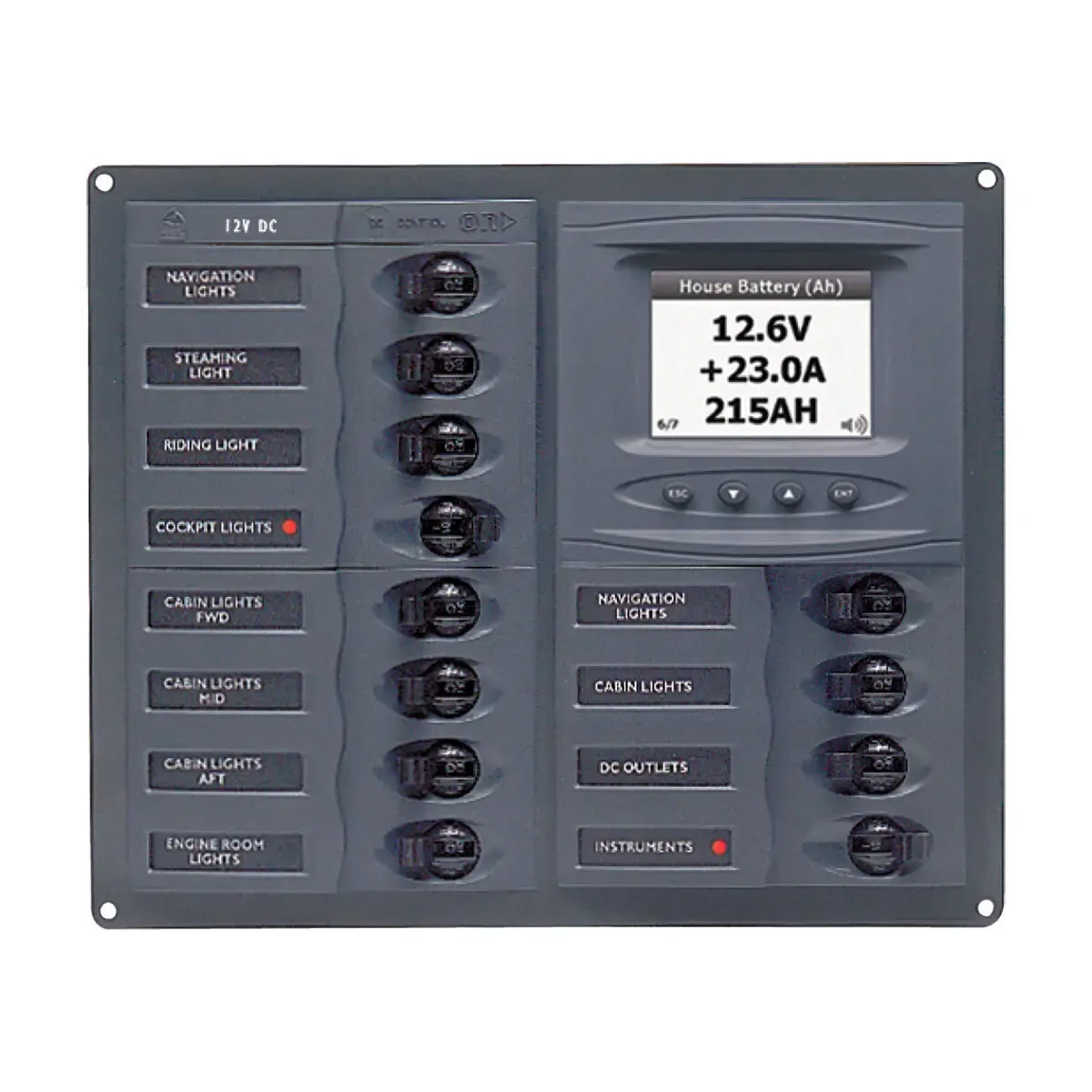

BEP 'Contour' Circuit Breaker Panels - with Digital Meters Circuit breaker panels with stylish curved front facia incorporating recesses for circuit breaker toggles preventing them from being switched on accidentally. Digital panel functions include volts for up to three battery banks and current discharge/charge as well as ampere hours used and remaining for two banks. The digital meter can also be used as a tank monitor. For meter specifications refer page 206. For secondary shunts refer page 211. For other label options refer pages 156 and 157. For replacement circuit breakers refer page 190. Features: - Durable grey powder coated marine grade aluminium base panel - Marine quality, magnetic, hydraulic, UL listed trip free breakers - Backlit labels supplied, refer page 156 - Suitable size negative busbar supplied, refer page 183 - 1x 450A/50mA shunt supplied, refer page 211 - Red LED indication for circuits 'on' - Green LED back lighting for meters and labels - Double pole configurations available for survey or additional safety - DC digital meters - 200 mV sensitivity, 1% accuracy including alarms. 12mm high numerals With the flexibility of the 'Contour' four way plastic modules, BEP can build panels to custom requirements if requested. BLA Code 113150 Circuits 12 Overall Size W x H mm 239x200 Cut Out Size W x H mm 219x180 Intrusion mm 65 Mount Screws Gauge 6 r/h Power Volt 12-24 Label Sheet 1 Circuit Breakers: 5 amp 3 10 amp 4 15 amp 4 20 amp - 25 amp 1 30 amp - Drop resistors required for LEDs in 24 volt installations. 113462 Drop resistor BEP 12 way suits 113147 & 113150 113463 Drop resistor BEP 16 way suits 113158 113465 Drop resistor BEP 24 way suits 113174 & 113194 113467 Drop resistor BEP 32 way suits 113182 Accessories: 113363 PCB Assembly 4 way DC 113364 PCB Assembly 8 way DC 113365 PCB Assembly 12 way DC
SKU BLA-113150
Brand BEP
