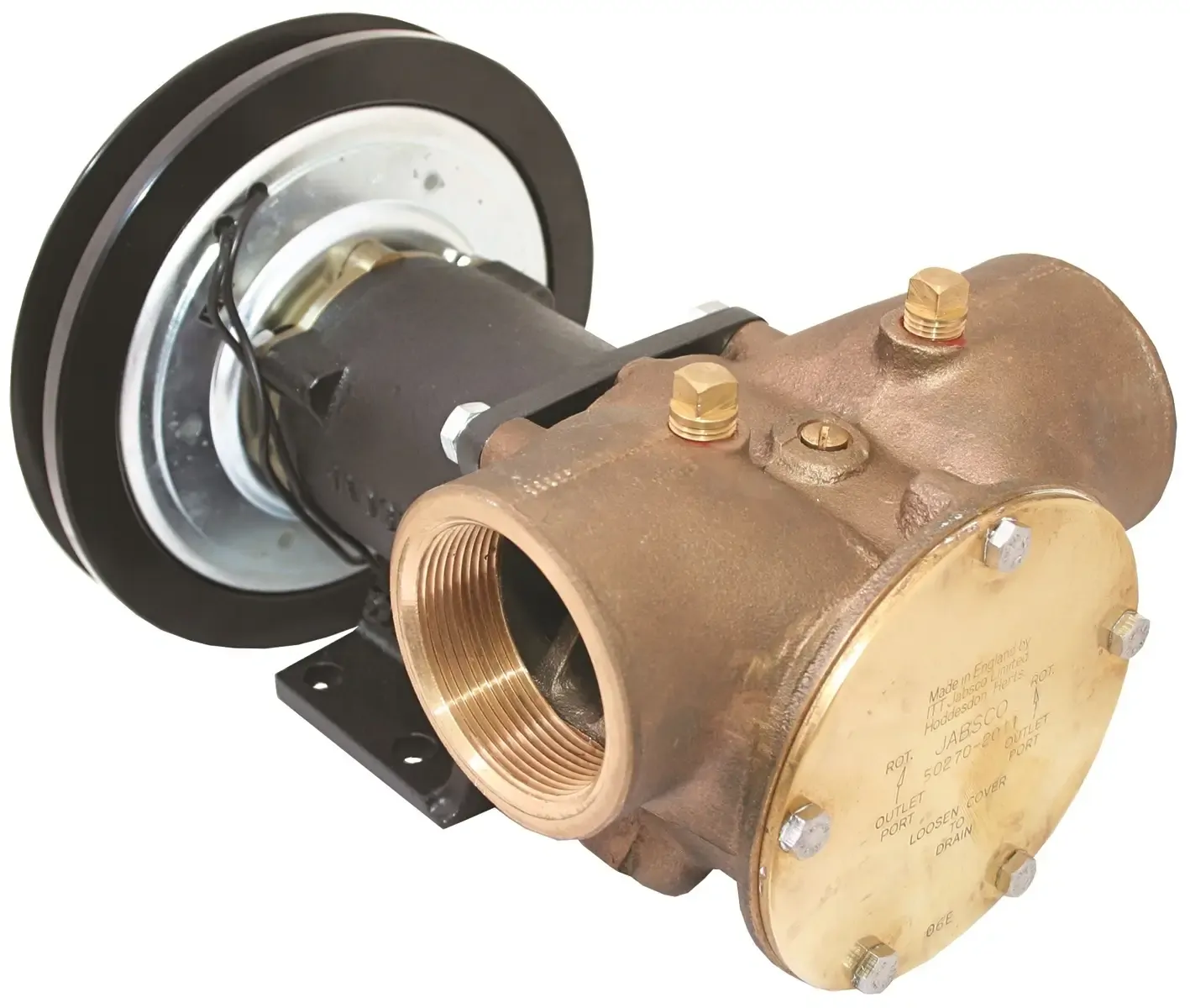

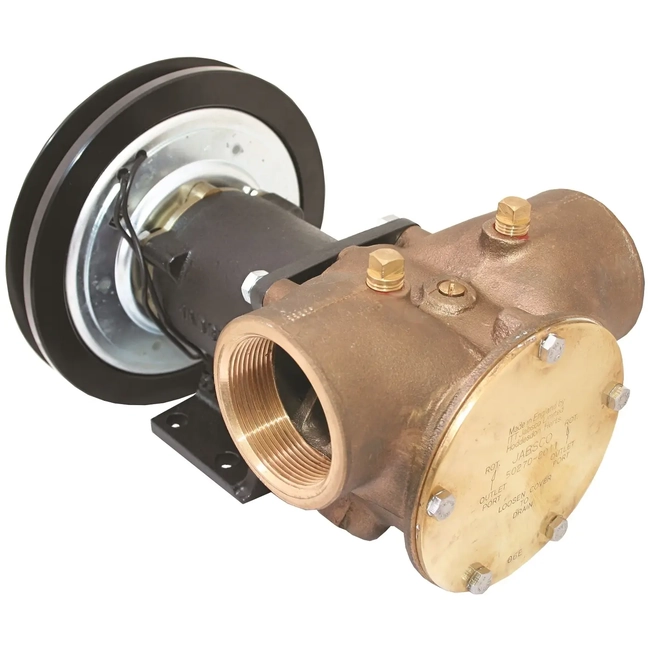

RWB Pump Brz Clutch 2" 2A 24v

Product Overview

Pump Brz Clutch 2" 2A 24v
Very heavy duty spaced dual bearing composite pumps with mechanical seals for long life in heavy duty commercial applications. 12 or 24 volt clutch. Single B or double A section pulley. Self priming to 4.5 metres. Flow rate : 22,000 litres per hour (4,840 GPH) at 3 metre head @ 1,500 RPM Pump size : 264mm L x 170mm W x 178mm H Fuse size : 12 volt - 5 amp fuse 24 volt - 2.5 amp fuse SKU Details Jabsco J50-148 12 volt 1B pulley 50270-2211 J50-149 24 volt 1B pulley 50270-2311 J50-150 12 volt 2A pulley 50270-2011 J50-151 24 volt 2A pulley 50270-2111 Sapre Parts SKU Details JABSCO J53-517 Impeller - neoprene 17936-0001 J55-222 Seal SP2701-54 J53-536 Impeller - nitrile 6760-0003 J55-196 Slinger X4020-324A J55-006 Service kit - neoprene SK408-0011 J55-213 Wearplate 2574-0000 J55-211 Gasket 816-0000 J55-212 Clutch screw X3001-176F J55-227 Water seal 21849 / 6408 J55-210 End cover 9336 J55-224 Washer X3083-291F J55-209 End cover screws SP1095-0640 J55-230 12v clutch SP2300-63FC J55-215 Cam - full 6988 J55-231 24v clutch SP2300-64FC J55-217 Cam screw SP1005-04 J55-232 1B pulley SP2300-63RA J55-228 Bearing SP2601-0458 J55-233 2A pulley SP2300-61RA J55-223 Screw X3001-180C J55-234 Clutch adapt 52201-0200B J55-248 Shaft 50277-0000 J55-208 Circlip Y5026-08

SKU	RWB-J50-151
Brand	RWB
