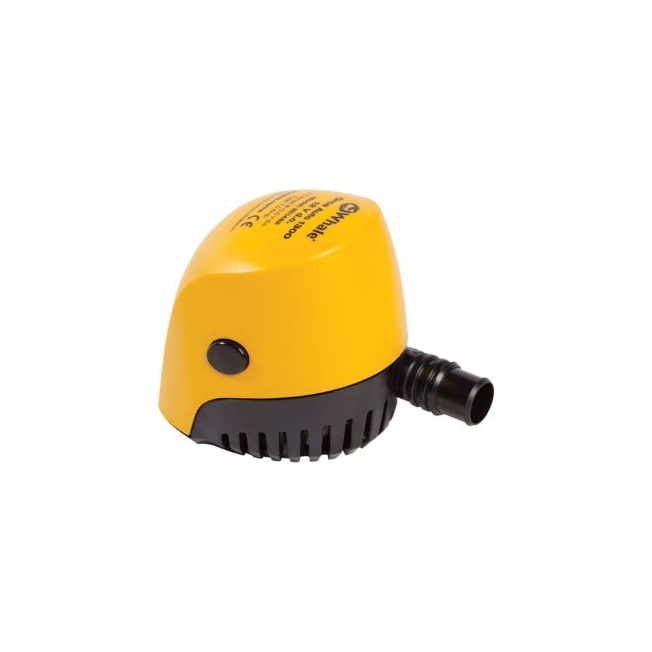

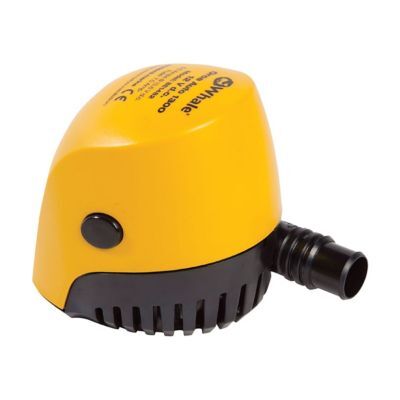

18/03/19 MATT SEDDON ADVISED MARITIMO NO LONGER PUCHASING Whale® Orca 1300 Automatic Bilge Pumps The Whale® Orca Auto 1300 automatic bilge pumps are designed to complement the intelligently controlled IC pump range. For ease of installation, wiring simplicity and security and to effect the removal of bilge water automatically and efficiently, Whale® has integrated a field sensor, innovative electronic control circuitry and powerful motor into one compact case. The large footprint ensures maximum surface area exposure to the bilge water and ensures lowest water level detection. The robust ABS housing contains the integrated microprocessor electronics which are sealed for protection against water ingress while the snap off motor housing enables easy cleaning of the acetal impellor and filter base. Features: - High performance 1300 US GPH flow rate in either 12 or 24 volt models - Fully protected integrated microprocessor electronics means no moving parts - Built in automatic water sensor makes installation simple - No separate bilge float switch required - Low amp draw extends battery life - Neat, compact shape with large foot print fits most areas - ABS fuel resistant housing, nitrile seal, acetal impellor - Large filter provides maximum surface area exposed to bilge water - Unaffected by wave motion - CE approved - 1 year warranty BLA Code Volt Capacity Open Flow Capacity @1m Head Max. Head Max. Amp Fuse Height Width Depth Outlet Dia. L/m gph L/m gph m Draw amp mm mm mm mm 131419 12 82 1300 69 1100 4.5 5 7 129 168 121 25/28 131423 24 82 1300 60 1100 4.5 2.5 5 129 168 121 25/28 N.B. As with all submersible electrics, attention is needed during installation to ensure that wiring connections remain above water level. Specified output is US gph open flow.

SKU	BLA-131423
Brand	Whale
