$74.01 $77.90
$3.89 off RRP of $77.90
Product Overview

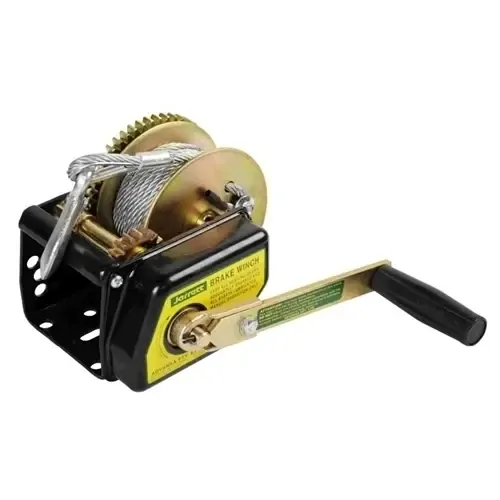

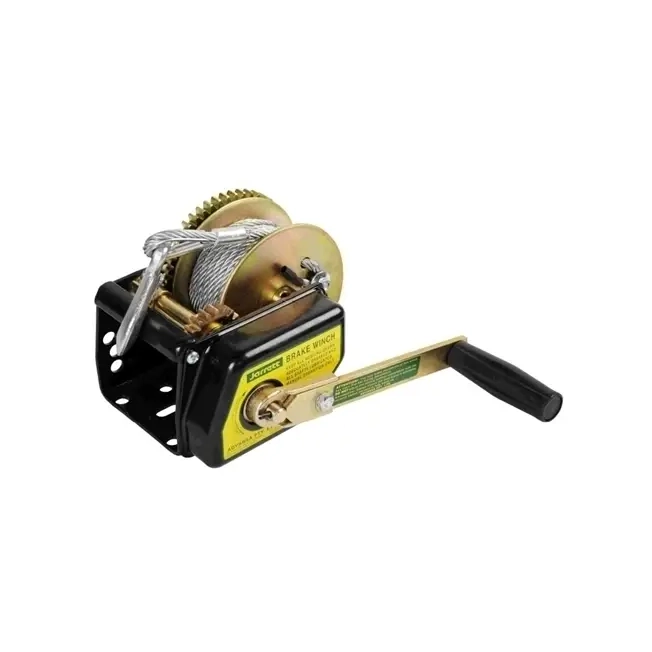

Jarrett 8000 Series Brake Winch 10:1 - 7.5m x 6mm Cable & Snap Hook - Winch rated at 500kg capacity.
Note: F18260 is used on 500kg Backsaver Crane – Product Code: F19001
Recommended for lifting applications. Self actuating brake requires a minimum of 18kg to operate safely.
Winches are not intended for the movement of people.
Features
- Heavy duty 4mm winch body
- Steel bushes
- Self actuating brake mechanism
- Fully enclosed brake
- Electroplated zinc cobalt
- Powder coated finish
- Detachable handle
- For maximum capacity, winches are to be installed using the four hole bolt down pattern
- Winches are not intended for the transportation of people
Note: Common user problem with this range of winches is the brake mechanism does not work when first assembled.
When packaged, the winch and handle are separate and need to be assembled as per the instructions included.
Handle Assembly is: The handle adaptor is turned clockwise until the ratchet is engaged prior to attaching the handle and securing with screw.
Model : F18260
Gear Ratio: 10:1
Application: Lifting
Rated Capacity: 500kg (4900N)
Mass (Winch only): 6kg
Type of Brake: Self Actuating
Drum Diameter: 50mm
Flange Diameter: 130mm
Drum Width: 52mm
Cable size: Ø6mm
Maximum Cable Capacity: 12m x Ø6mm
Max. Effort on handle at Rated Load: 18kg
Cable Breaking Strain: 2712kg
Cable (Galv) as supplied: 7.5m x Ø6mm
Fastening Device: Snap Hook
| SKU | ANS-WB-F18260 |
| Brand | Jarrett |
