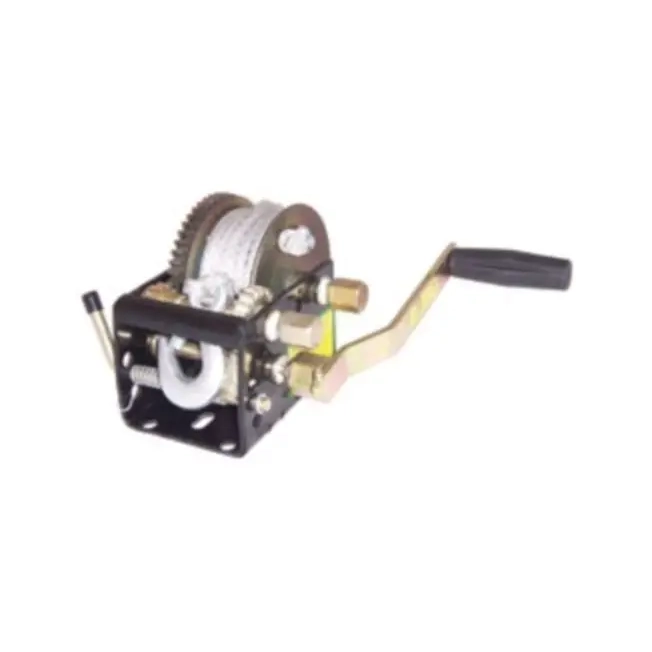

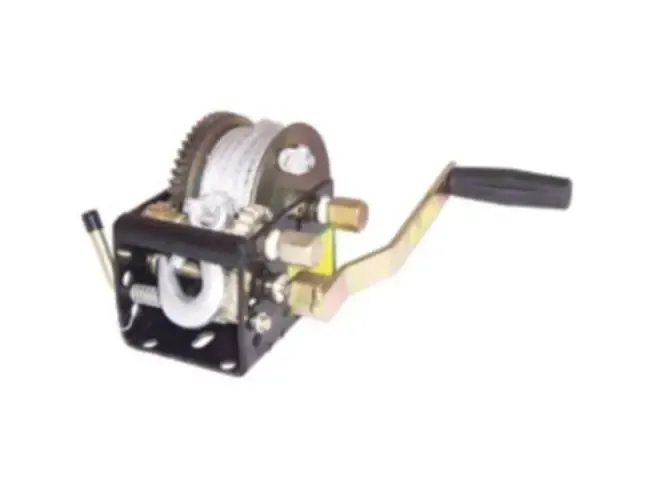

This Jarrett boat winch is dependable top quality product tested by the South Australian Institute of Technology. All winch gearings are supported between sintered bronze bearings. Pinion gears and two way ratchet pawl are case hardened for long wear and all gears are machined not pressed. Complete with Dynex fibre rope and snap hook.
The Dynex Fibre Rope combines good strength retention with good flexibility and dynamic properties. Say goodbye to metal splinters!
Note: These winches are not to be used for lifting.
These winches are recommended for boat size up to 6 metres, aluminium or fibreglass hull boat, where trailer design is unknown or has no keel rollers or side wobbles.
Gear Ratios:
1:1 - For fast retrieval of slack cable
5:1 - To complete the retrieval of the boat when the cable becomes under a load

The winch is equipped with removable handle for change of ratio option.
Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers.

Features
Winch
    Heavy duty 4mm winch body
    Steel bushes
    Machined gears
    Spare parts available
    Electroplated zinc cobalt handle
    Powder coated finish
    Detachable handle

Fibre Rope
    Exceeds the strength of steel wire ropes of same diameter while floating on water
    Has low elongation properties
    Is extremely flexible, yielding easy handling in all respects
    Has good UV resistance and excellent resistance to chemicals

GEAR RATIO     5:1 / 1:1
APPLICATION:     PULLING
Rated capacity:     700kg (6860N)
Type of Ratchet:     Lever Action
Drum diameter:     50mm
Flange diameter:     127mm
Drum width:     52mm
Max cable capacity:     15m x Ø5mm
Max web capacity:     9m
Fibre Rope capacity:     12m
Max. effort on handle at rated load:     25kg
