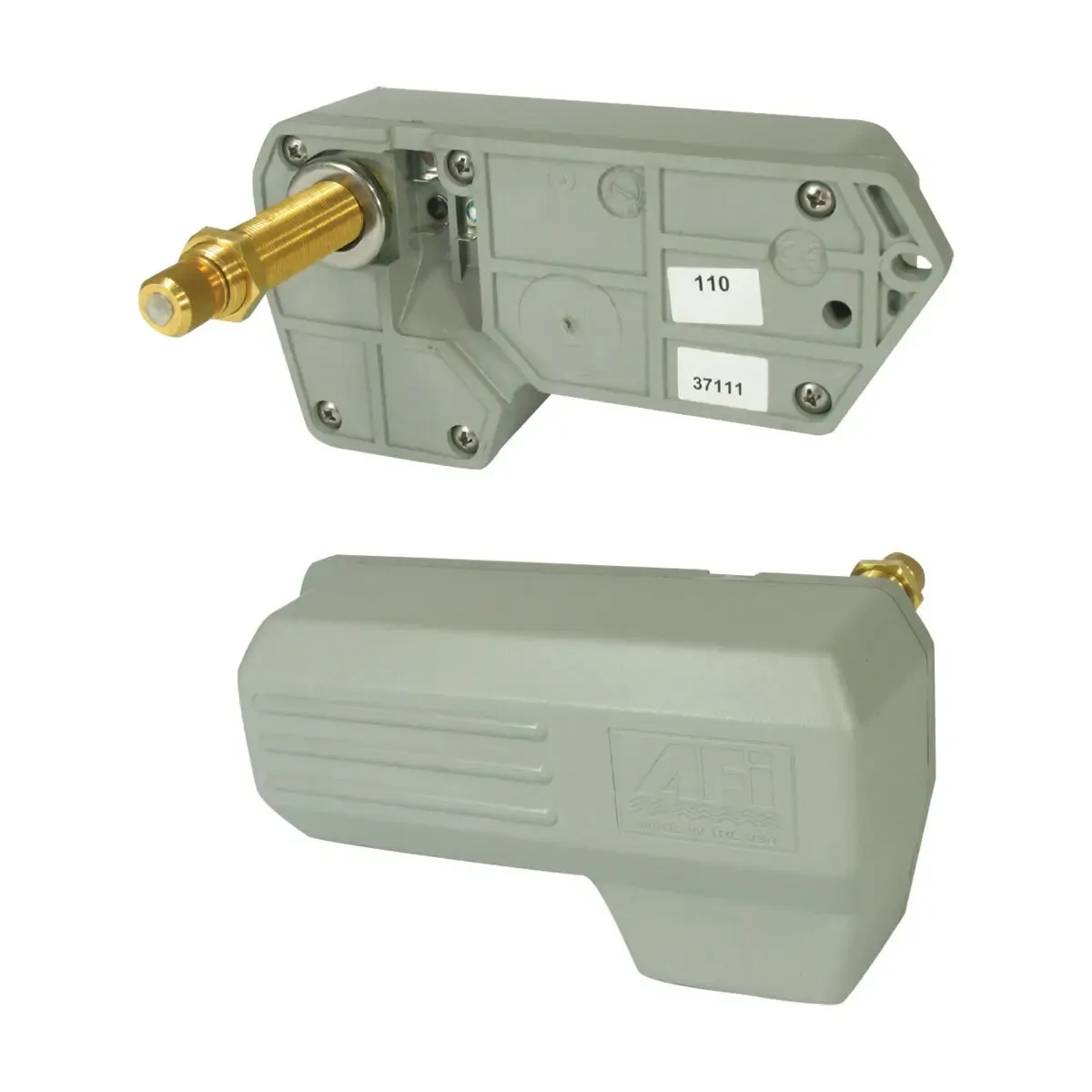

Marinco® AFI 1000 Waterproof Wiper Motors The 12 volt single speed motor is protected by a fully sealed waterproof housing, constructed of U.V. stabilised high temperature, high impact thermoplastic. For suitable wiper arm options see page 262. Features: - Adjustable right or left self parking - Factory pre set sweep of 110 degrees, can be adjusted to 50, 65, or 80 degrees - Powers up to 460mm (18") Deluxe arm and 460mm (18") Deluxe blade combination at sweep sets of 80° or less - Powers up to 405mm (16") Deluxe arm and 405mm (16") Deluxe blade combinations at a sweep set of 110° or less - 12 volt heavy duty motor with anti-rotation knurled drive shaft and solid brass arm drive nut - M16 Brass shaft - Coast to park with adjustable right or left self parking - RF shielded circuitry - Stall torque: 63 kgf/cm; 6.2 Nm (55 in-lbs) - Stall current: 9.8-10 amps at 12V - No load current: 0.8-1.2 amps at 12V - 3 year warranty BLA Code Volts Motor Length mm Motor Depth mm Motor Width mm Thread Shaft Length mm Overall Shaft Length mm 116080 12 168.4 50.8 83.8 28 42 116082 12 168.4 50.8 83.8 53 63

SKU	BLA-116082
Brand	Marinco
