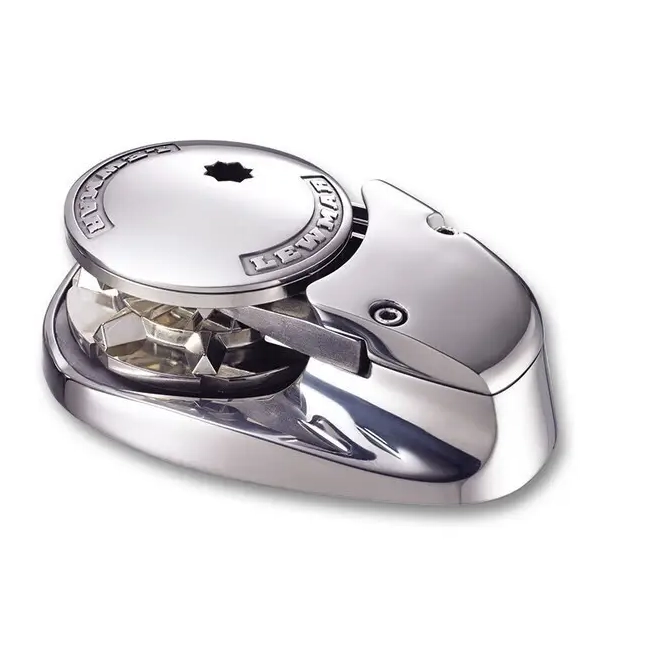

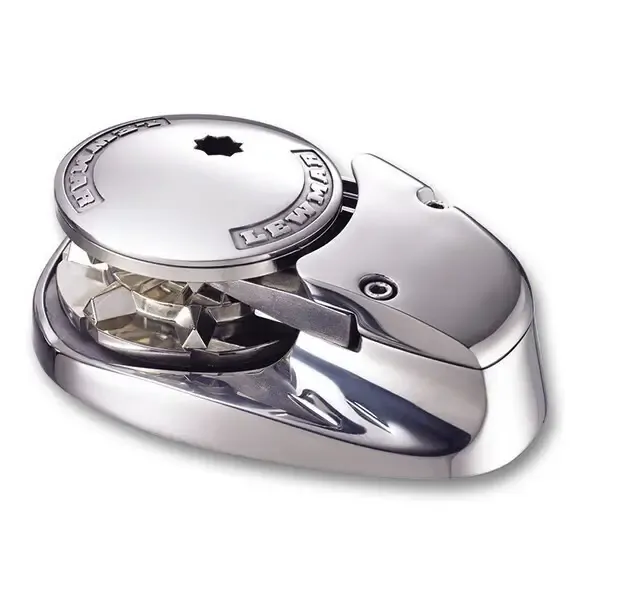

Lewmar Winch Anchor V700 Kit 320W 12V

Product Overview

Lewmar® Vertical Anchor Windlass - V700 The V700 is one of the most attractive and durable windlasses available. The above deck housing features 100% 316 grade stainless steel construction to create an attractive sleek, low profile design. The V700 is supplied with a combination rope/chain gypsy with the ability to accept 6mm, 7mm and ¼" short link chain together with 12mm medium lay three strand or eight plait nylon rope. Simple power up, power down push button operation and two unique built-in features (motor protection and anchor lock), make this an ideal all around winch. Features: - 100% 316 grade stainless steel deck unit - Low profile design - Dual direction motor - Combination rope/chain gypsy - IP67 rated motor casing - Fall-safe anchor lock - Fast line speed - Impact-resistant motor cover - For boats up to 10m - 5 year warranty BLA Code Watts Volts Std Chain Std mm Rope mm Max Pull kg Work Load kg Max Chain Speed m/min Suits Deck mm Weight kg Boat Size m 154300 320 12 6/7 12 320 79 25 10-70 6.5 6-10 Standard Inclusions: 154486 Guarded remote up/down rocker switch 154504 Dual solenoid pack 154510 Circuit breaker panel mount 35A SP15156248 Clutch release handle Accessories: 154466 Grey down foot switch with closed cover 154468 Grey up foot switch with closed cover 154470 Stainless steel down foot switch with closed cover 154472 Stainless steel up foot switch with closed cover N.B. Boat size recommendation is for an average boat under average conditions and is a guide only.

SKU	BLA-154300
Brand	Lewmar
