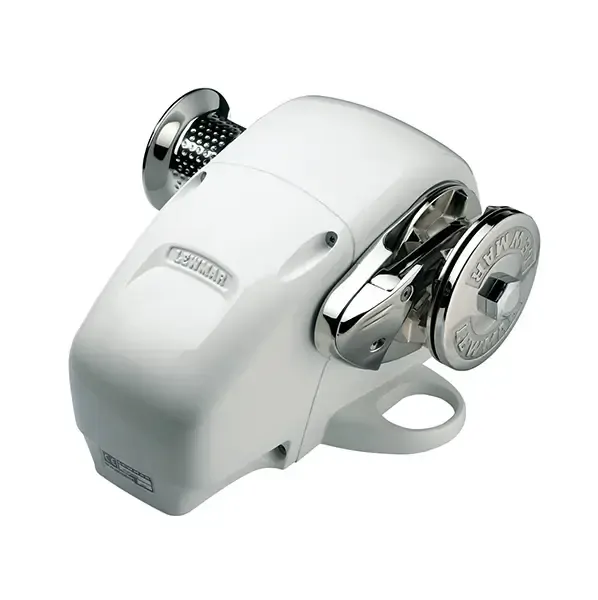

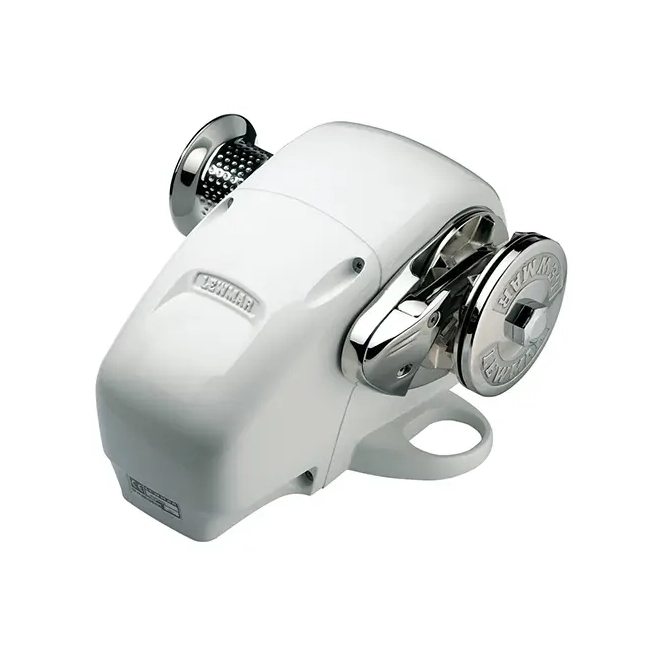

Winch Anchor H3 Kit With Cap 1000W 12V - Designed for above deck installation, the H Series of windlasses are driven by a reliable worm drive gearbox providing outstanding power. Each H Series windlass Features an integral dual direction solenoid to simplify wiring and is protected by a durable aluminium and composite main case. Features • Easy one piece installation • Horizontal worm drive motor-gearbox • Integral solenoid protected by main case • Aluminium and composite main case • Unique capstan – W.A.R.P wear reduction pattern • For boats 10m to 14m • Available with Gypsy only or Gypsy Drum • 3 year warranty BLA CodeModel WattsVolts Std Chain Std mmRope * mmMax Pull kgWork Load kgMax Chain m/minWeight kgBoat Size m BLA CodeModel WattsVolts Std Chain Std mmRope * mmMax Pull kgWork Load kgMax Chain m/minWeight kgBoat Size m 154412H3 Gypsy Drum100012814-168902152825.511-14 Standard Inclusions 154516 Circuit breaker panel mount 90A* 154518 Circuit breaker panel mount 110A* *Model dependent 154486 Guarded remote up/down rocker switch Accessories 154466 Grey down foot switch with closed cover 154468 Grey up foot switch with closed cover 154470 Stainless steel down foot switch with closed cover 154472 Stainless steel up foot switch with closed cover 154614 Manual recovery kit N.B. Boat size recommendation is for an average boat under average conditions and is a guide only. *14-16mm 3 strand or 16mm 8 plait nylon ropes only

SKU	BLA-154412
Brand	Lewmar
