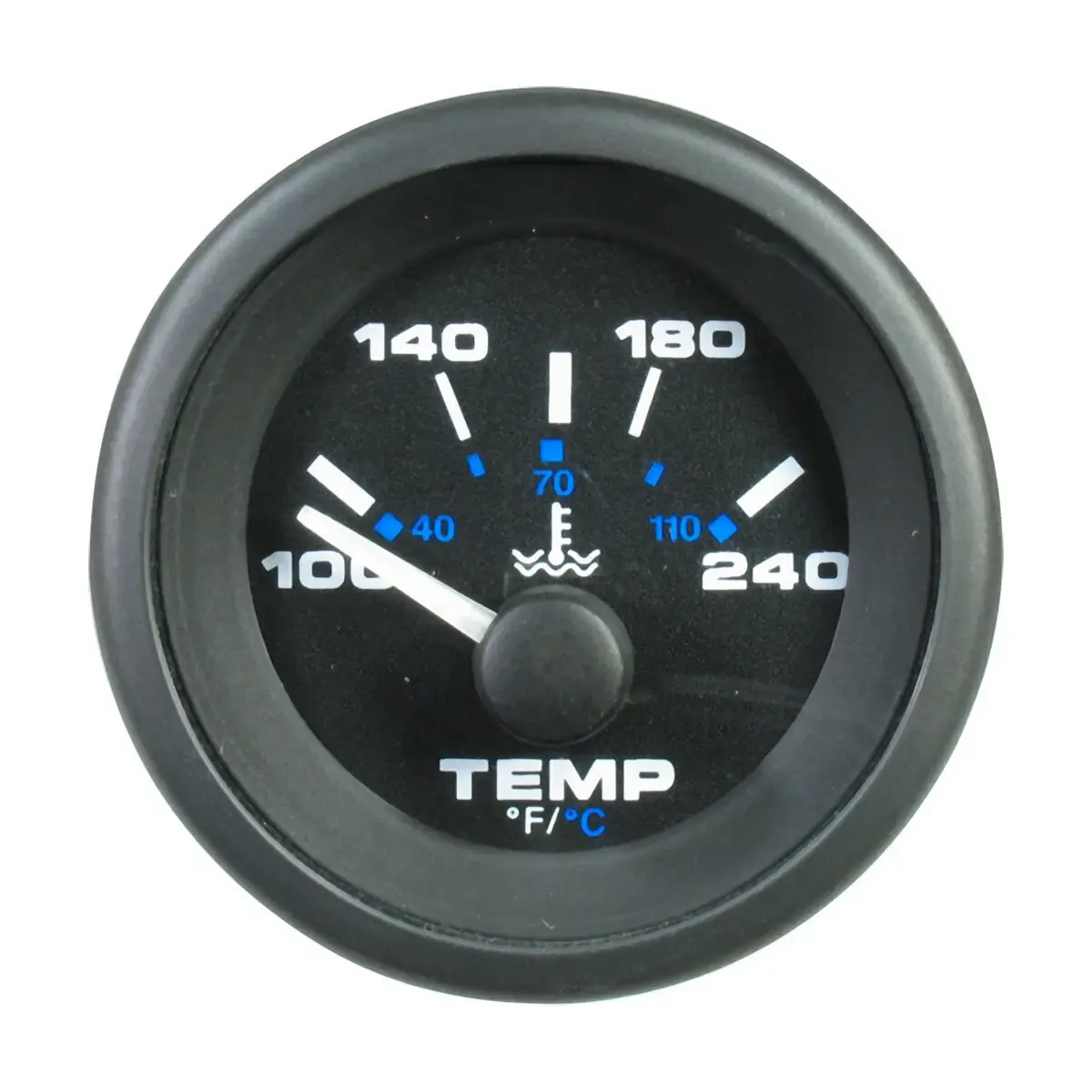

Veethree Instruments Premier Pro Domed Gauges Features: - Very low profile black bezel follows the curve of the lens to eliminate any water 'trapping' - White graphics and pointer on a black dial background - Where applicable, metric information is shown in blue - Light piping directs red light behind the translucent dial and white light to the pointer for optimal night vision - Fog free domed glass lens is scratch resistant - Suitable for 24 volt application with the addition of a drop resistor (112394, 112396) and 24 volt bulb 112390 - Shielded to prevent magnetic interference - Silicone dampened Dimensions: A mm B mm Cmm D mm 75mm Tacho 96 86 70 13 75mm Speedometer 96 86 82 13 50mm Electrical 61 53 63 11 BLA Code Description Face Dia. mm *Sender Style Tachometers: 112224 Tacho 7000 RPM inboard & outboard 75 Coil and O/board alt 112226 Tacho 4000rpm diesel alternator 75 Motor Alternator N.B. Refer to page 230 for tachometer application guide Speedometer: 112230 Speedo kit 35 MPH 75 G included 112232 Speedo kit 50 MPH 75 G included 112234 Speedo kit 65 MPH 75 G included Kits include 20' of pitot hose Water temperature gauge: 112242 Water temperature 100ºF - 240ºF 50 D 112246 Water pressure gauge kit 0 - 40 psi 50 WP Included Oil pressure: 112252 Oil pressure 0 - 80 PSI 50 C 112254 Oil pressure 0 - 100 PSI 50 C Hourmeter: 112258 Hourmeter, 10,000 Hrs 50 Not required Voltmeter: 112262 Voltmeter, 10 - 16 volt 50 Not required Fuel: 112268 Fuel 50 F Trim: 112272 Evinrude®/Johnson® outboards 50 Engine manufacturer 112273 Honda® outboards 50 Engine manufacturer 112274 Mercury®/Mariner®, Cobra®, Volvo® DP & SX, Yamaha® O/B 2001 on 50 Engine manufacturer Accessories: 112394 Drop resistor suit 75mm gauge 112396 Drop resistor suit 50mm gauge 112390 24 volt bulb * For Sender style refer page 237

SKU	BLA-112242
Brand	VeeThree Instruments
