Product Overview

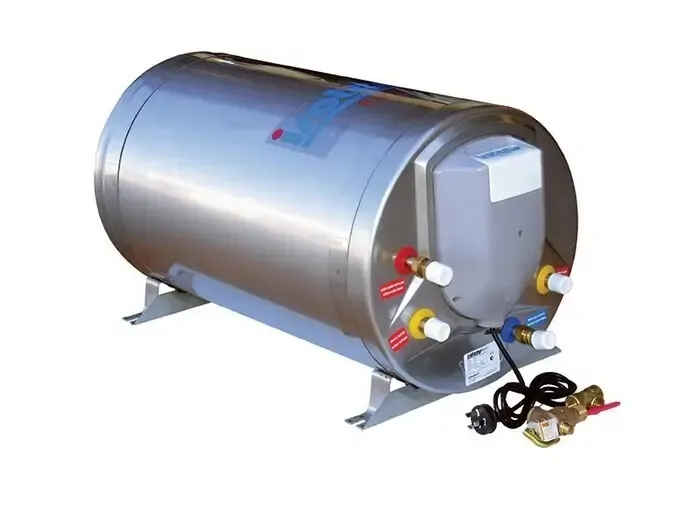

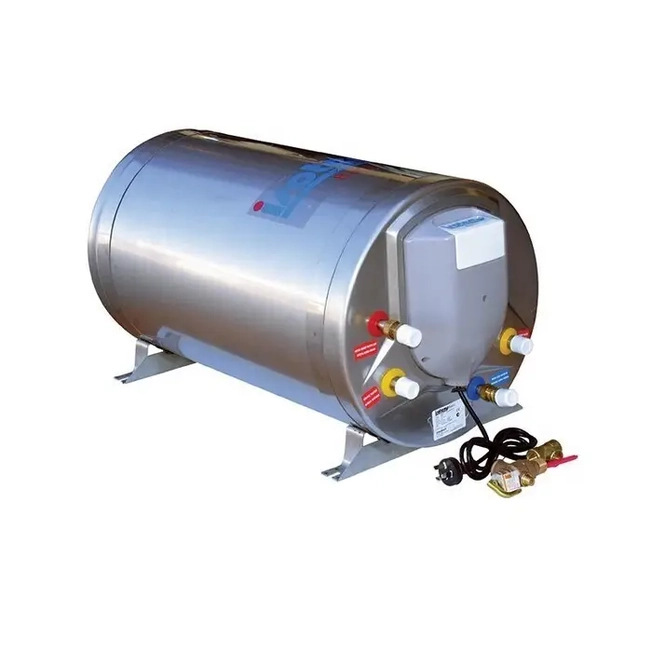

Isotherm® Stainless Steel Water Heaters - Australian Standards Approved Smart finish in a brushed stainless steel exterior, the quality of the Isotemp Basic by Isotherm®, is not just skin deep. Optimal water heating is achieved in two ways, firstly by an immersed electric heating element (immersion heater) and secondly by utilising the boat's engine water heat (heat exchange). Isotemp water heaters may be used with freshwater or saltwater cooled engine systems. The immersion heater and heat exchanger are positioned in the lowest part of the tank, providing even thermostatic cycle heating of the water in the system. The engine water heat exchanger coil is extra long for faster heating, especially handy on sailing yachts which may run their engine for short periods only. The water inlets and outlets are positioned to minimise mixing of cold water into the hot, by the incoming water. The immersion heater has been designed to enable easy removal to allow for inspection and cleaning of the tank. The materials used in the construction of the tank are of the highest quality. Acid resistant stainless steel AISI 316 is used for all parts of the tank that are in contact with water. The internal tank is insulated with expanded polyurethane insulation ensuring low temperature loss. The outer cover and mounting feet have been crafted from non-magnetic stainless steel AISI 304. The fixing feet are adjustable to 360º, allowing the tank to be mounted horizontally or vertically. An optional accessory to the range is the thermostatic mixing valve, 135840, (controls the maximum temperature of water at the tap) which adds to safety, particularly important if having young children on board. The Isotemp range of water heaters by Isotherm® have a two year full warranty and a five year limited warranty on the tank. BLA Code Volume Style Dimensions Length x Dia. Weight Max. Pressure Immersion Heater L mm kg bar Volt Watt 135692 20 Slim 655 x 295 9 5.0 240 750 135696 25 Slim 780 x 295 11 5.0 240 750 135700 24 Basic 460 x 395 11 5.0 240 750 135702 40 Basic 630 x 395 17 5.0 240 750 135704 50 Basic 750 x 395 20 5.0 240 750 135706 75 Basic 1040 x 395 24 5.0 240 750 Accessories: 381668 Overheat thermostat 381664 Thermostat
SKU BLA-135704
Brand Isotherm
