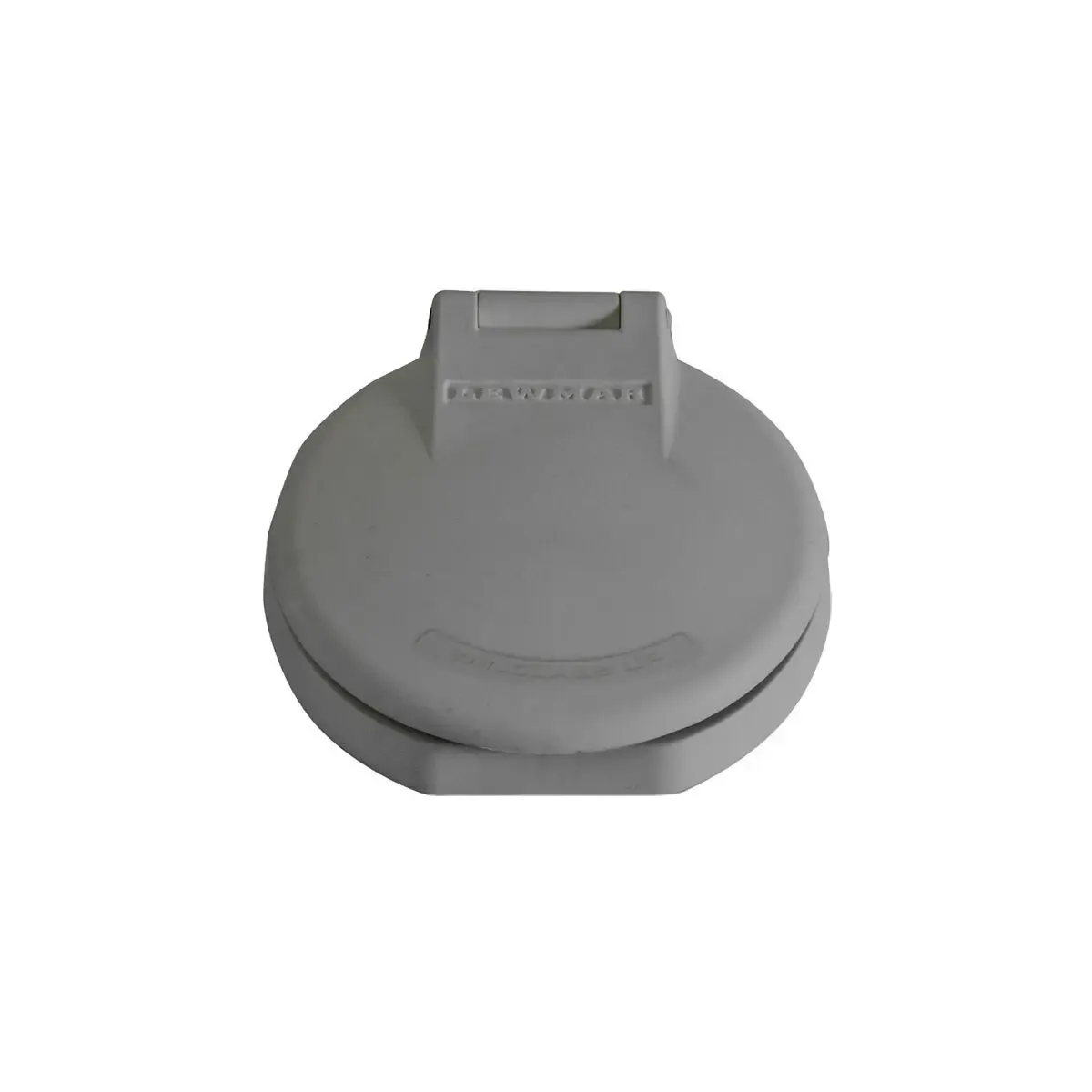

Lewmar® Foot Switches A range of foot switches providing direct control for all Lewmar® 12 or 24 volt DC electric windlasses. Each switch features a solid hinged cover for protection and to guard against accidental foot operation with optional centre hole open models which allow for finger operation when required. Suitable for 5A open contact 12 or 24 volt, must be used with solenoid or control box. For additional protection consider the CHSX range. Rated to IP67/5 for water resistance and feature a twin sealed switch compartment and composite plastic body. Available with either a composite plastic or polished stainless steel hinged lid. BLA Code Model Colour Direction Lid Material Centre Opening Volts 154459 Std White - Plastic No 12/24 154460 Std Grey - Plastic No 12/24 154461 Std White - Plastic Yes 12/24 154462 Std Grey - Plastic Yes 12/24 154465 Std White Down Plastic No 12/24 154466 Std Grey Down Plastic No 12/24 154467 Std White Up Plastic No 12/24 154468 Std Grey Up Plastic No 12/24 154469 Std S/S - S/S No 12/24 154470 Std S/S Down S/S No 12/24 154472 Std S/S Up S/S No 12/24 154488 CHSX S/S - S/S Yes 12/24 154490 CHSX Black - Black Yes 12/24 154492 CHSX S/S - S/S No 12/24 154494 CHSX Black - Black No 12/24

SKU	BLA-154466
Brand	Lewmar
