Product Overview

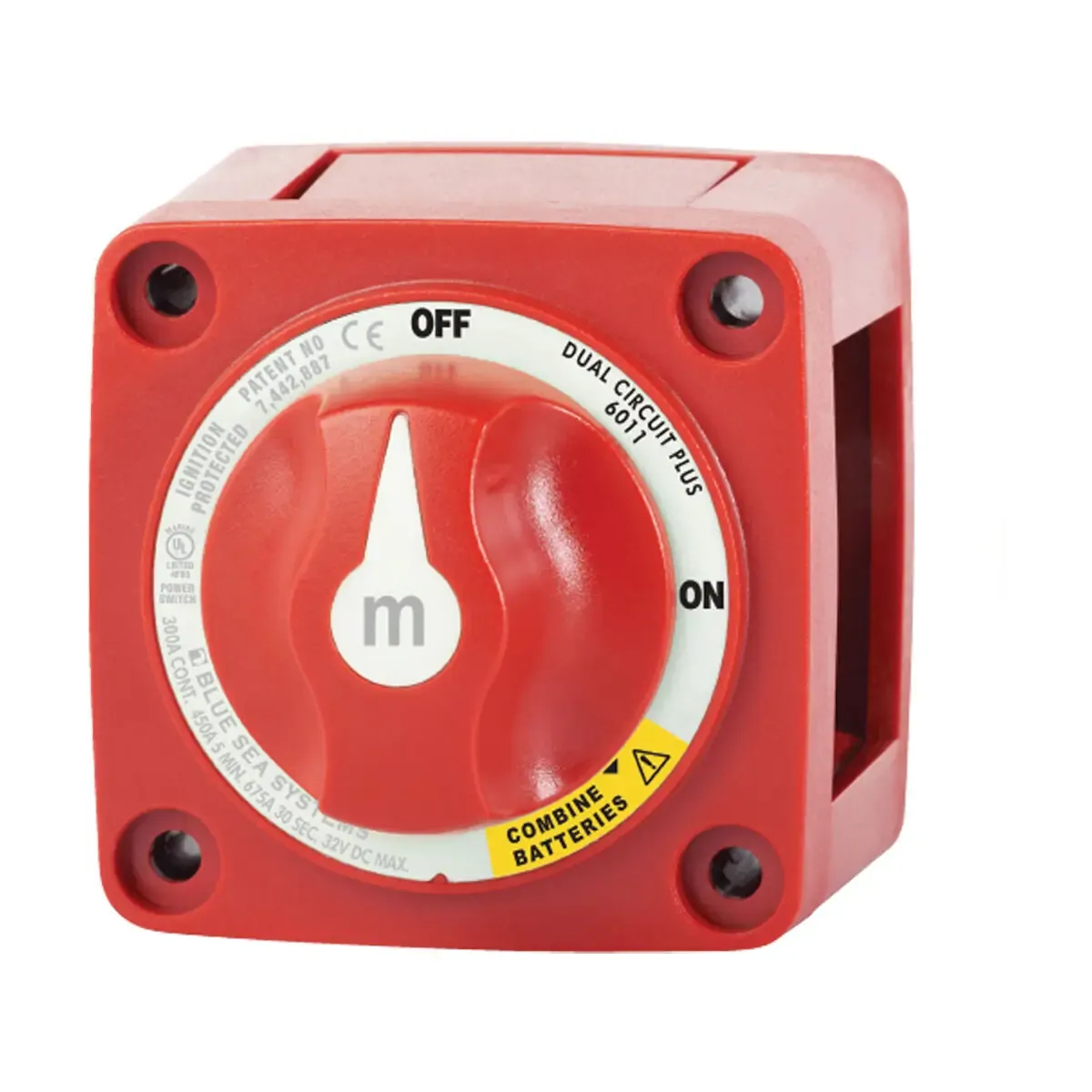

Blue Sea System M Series Battery Switch - Dual Circuit & Dual Circuit Plus 300 Amps continuous rated battery switches for simultaneously switching two isolated battery banks or circuits BS-6010- Simultaneously switches two isolated battery banks or circuits. May be used to switch the positive and negative conductors for required applications BS-6011(B)- Simultaneously switches two isolated battery banks or combines battery banks to all loads. CAN NOT be used to switch and positive conductors due to its combine feature. Features: - Tin-plated copper studs for maximum conductivity and corrosion resistance - Studs accept 3/8" (M10) ring terminals - One-piece stainless flange nuts ensure safe and secure connections - Isolating cover protects rear contacts - Breakout tabs allow wire access in any direction - 6 Circuit label set included (not included with 6005 and 6005200) BLA Code BS-6011 Bulk BLA Code BS-6011B Description DualCircPlus Cranking Rating: 30 sec. 675A Intermittent Rating: 5 min. 450A Continuous Rating 300A Voltage Max. Operating 32V DC
SKU BLA-BS-6011B
Brand Blue Sea Systems
