Product Overview

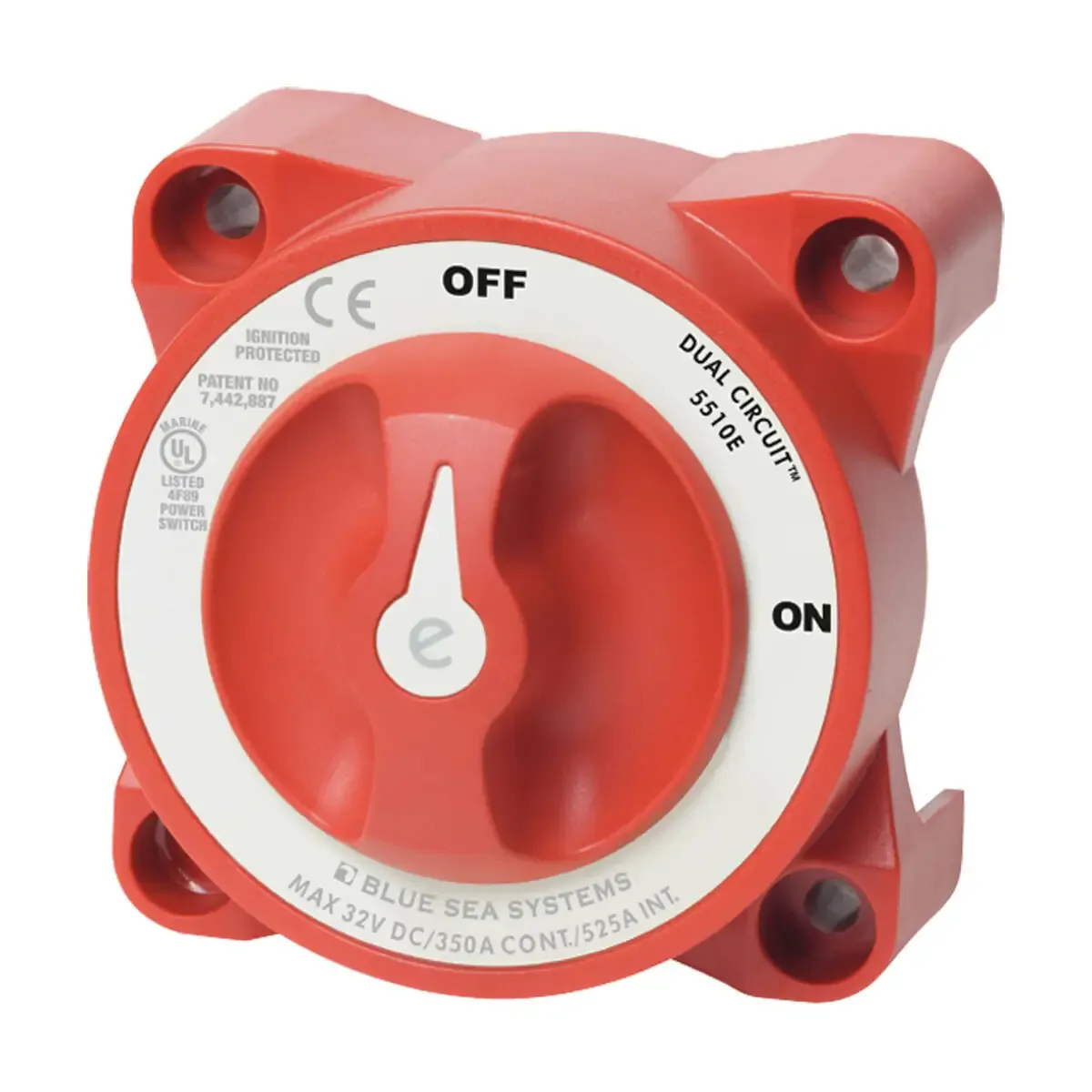

Blue Sea Systems Battery Switches Single Circuit On-Off Switches an single battery to a single load group Blue Sea System E Series Battery Switch - Dual Circuit & Dual Circuit Plus 350 Amps continuous rated battery switches for simultaneously switching two isolated battery banks or circuits BS-5510E- Simultaneously switches two isolated battery banks or circuits. May be used to switch the positive and negative conductors for required applications BS-5511E(B)- Simultaneously switches two isolated battery banks or combines battery banks to all loads. CAN NOT be used to switch and positive conductors due to its combine feature. Features: - Tin-plated copper studs for maximum conductivity and corrosion resistance - Accepts up to 4/0 AWG (120 mm²) battery cables - Studs accept 3/8" (M10) ring terminals - Fits most Perko and Guest low amperage battery switch hole patterns BLA Code BS-5510E Description Dual CircuitTM Cranking Rating: 30 sec. 700A Intermittent Rating: 5 min. 525A Continuous Rating 350A Voltage Max. Operating 32V DC Accessories: BS-7920B Battery Switch Identification Label Set
SKU BLA-BS-5510E
Brand Blue Sea Systems
