Product Overview

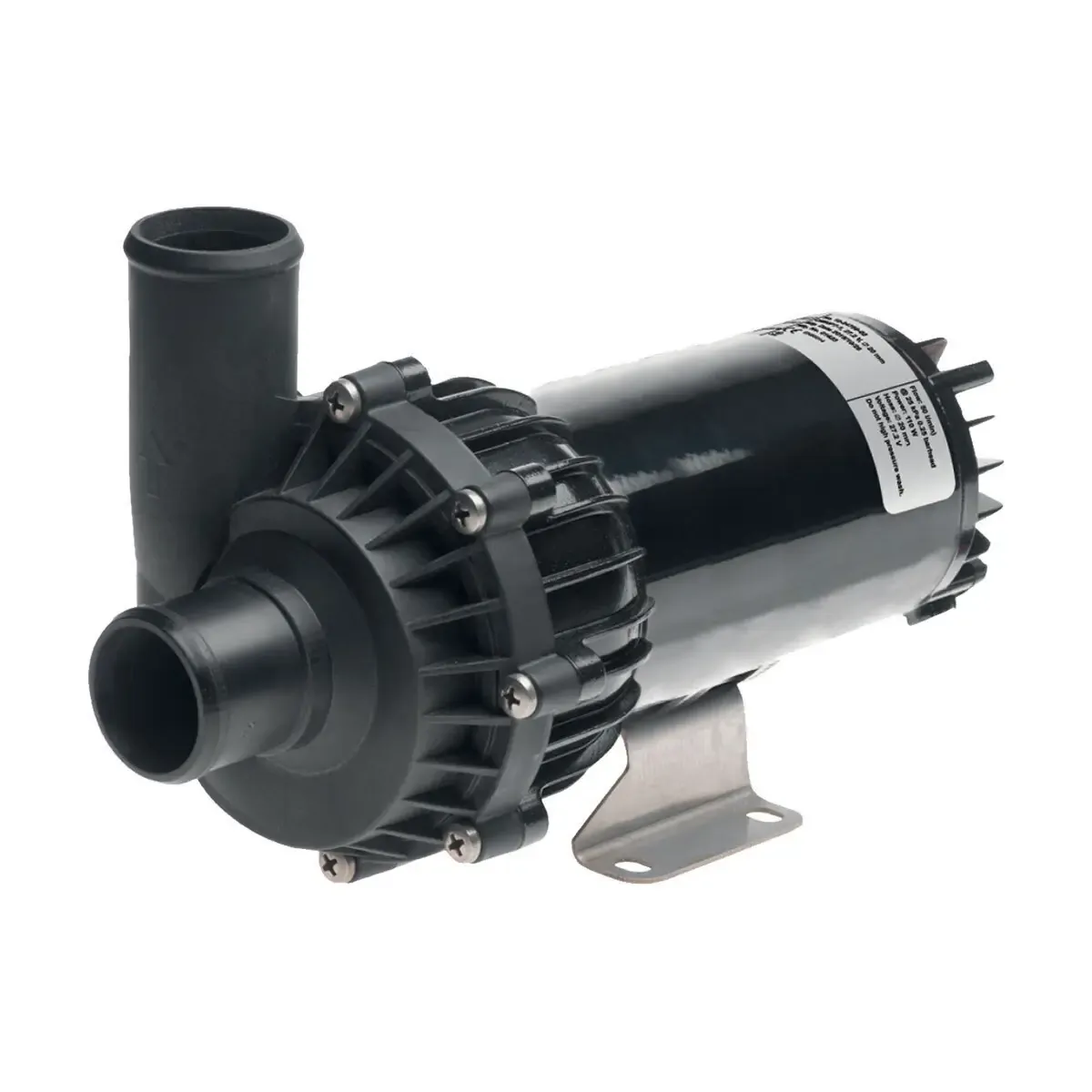

Circulation Pumps SPX's CM-series are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for freshwater, ethylene glycol and saltwater circulation. SPX Centrifugal Pumps Specifications: - System pressure: -0.3 to +3.0 bar; stationary max. 4.0 bar - Liquid: water/glycol mixture; max. 60% glycol, fresh and saltwater - Motor service life: More than 5,000 hours at nominal voltage 10,000 start/stops. Interchangeable motor - Motor voltage: Nominal 13.6V DC for use between 10-16V, Nominal 27.2V DC for use between 20-32V - Input power: Max. 125W - Dry running: 30 minutes - Dimensions: 244 mm (L) x 120 mm (W) x 150 mm (H) - Ports: Ø 20 mm (¾") & Ø 38 mm (1½") - Weight: 3.0 kg - Body: PPA, glass-fibre reinforced - Mounting: Separate universal bracket for flat surfaces BLA Code Model Volts Si

SKU BLA-132764
Brand SPX Johnson Pump
