Product Overview

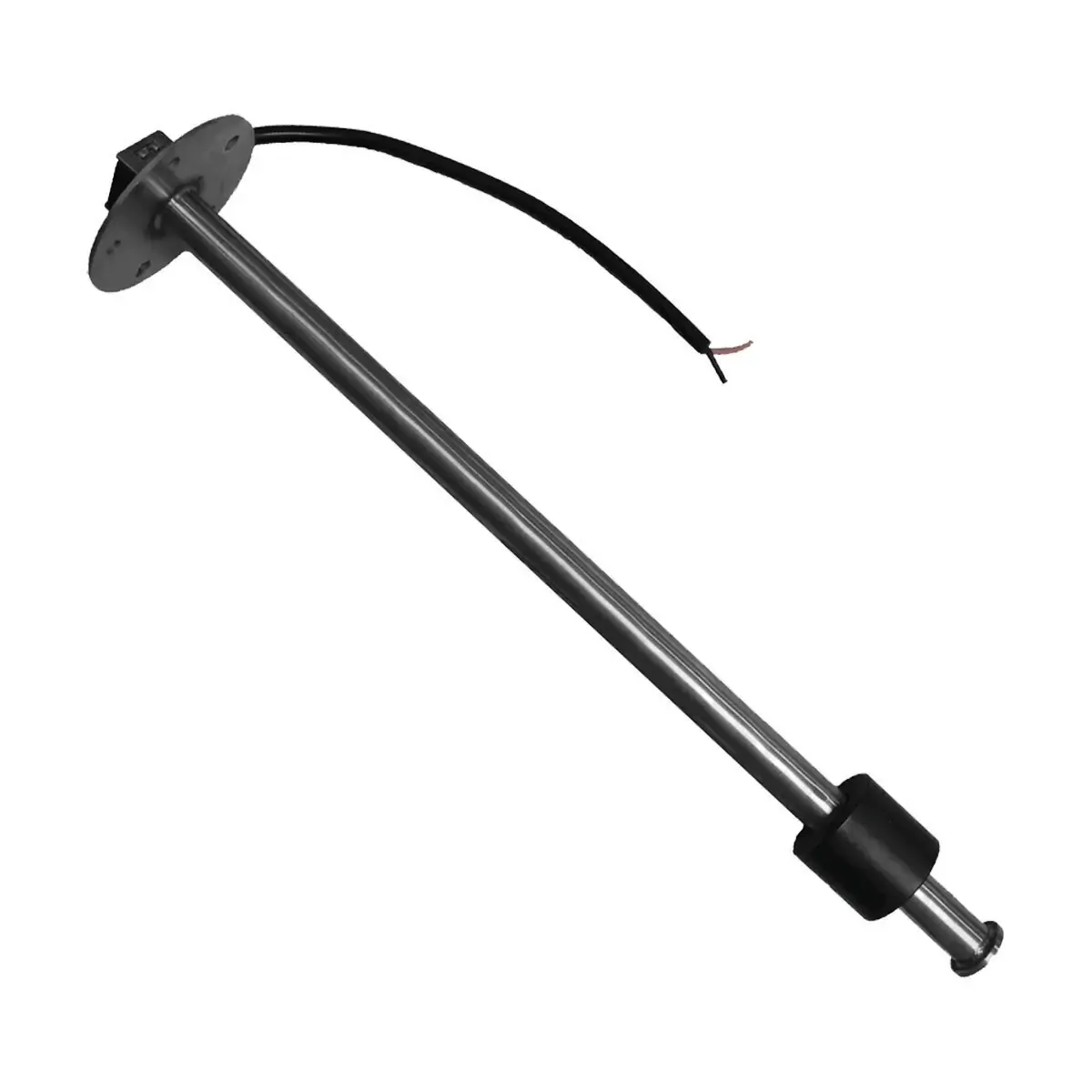

Veethree Reed Switch Tank Sender Veethree's reed switch sender is compatible with a variety of fuel and fluid types, including; gasoline, diesel, hydraulic fluids, black water and grey water. The reed switch sender unit provides liquid level information via a series of reed switches positioned inside the sealed level tube, a float with built in magnets then triggers the reed relays generating a resistance with an ohm value that increases or decreases. The float is the only moving part of the sensor, thereby minimising potential mechanical failures and maximising flexibility of installation even in tanks with baffles. Features: - Reliable Solid State Electronics - Compatible with a range of fuel types and fluids - Suitable for use with both 12V and 24V gauges Technical specifications: - Material: 316 Grade Stainless Steel - Mounting: Standard SAE 5 hole pattern - Waterproof: IP65 - Output: 240-33 Ohm (sender style F) or 0-180Ohm - Resolution: 0.5" approx. - OP Range: -20C to +70C - Meets: SAE, NMEA, ABYC 240-330 0-180 Length Number of Ohm BLA Ohm BLA mm Reed Switches Code Code 112500 112550 150 7 112502 112552 175 9 112504 112554 200 9 112508 112558 250 13 112512 112562 300 15 112516 112566 350 18 112520 112570 400 21
SKU BLA-112520
Brand VeeThree Instruments
