Product Overview

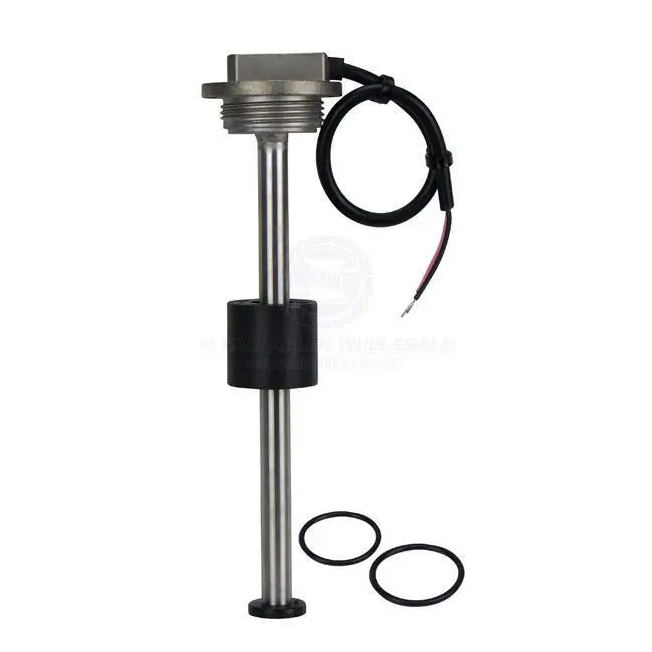

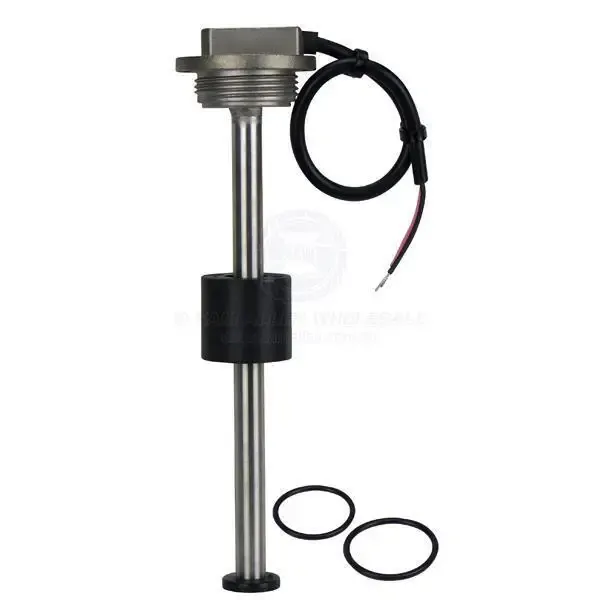

Sender 1 1/4 Bsp 125mm 240-33 Ohms S3
FEATURES: Utilising magnetic field to control the reed on-off switch, the sender FEATURES: a long service life and protection against vibration. • Output signal: 240~33?. • 316G stainless steel main body. • 1-1/4 inch BSP twist-on Thread assembly. • Operating temperature: -40 Degree Celsius - +85 Degree Celsius. • Protection Rating: IP67. • Mounting: 38mm x 2.6mm O-ring. 43mm x 3.5mm O-ring. • 250mm tinned wire with PVC cover. • 33mm float diameter. Part No.41125Length 125mmMount Style 1-1/4 inch BSPMount Flange Dia. 54mmOHMS 240-33Note Special sizes available to order. Length is measured from underside of the flange to the base of the shaft. GUIDES & DOCUMENTS Installation Instructions View PDF

SKU SAW-41125
Brand KUS
