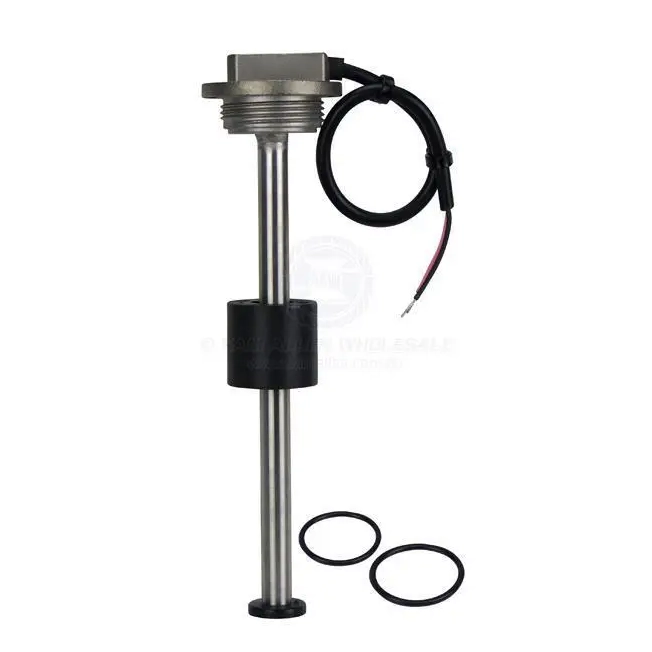

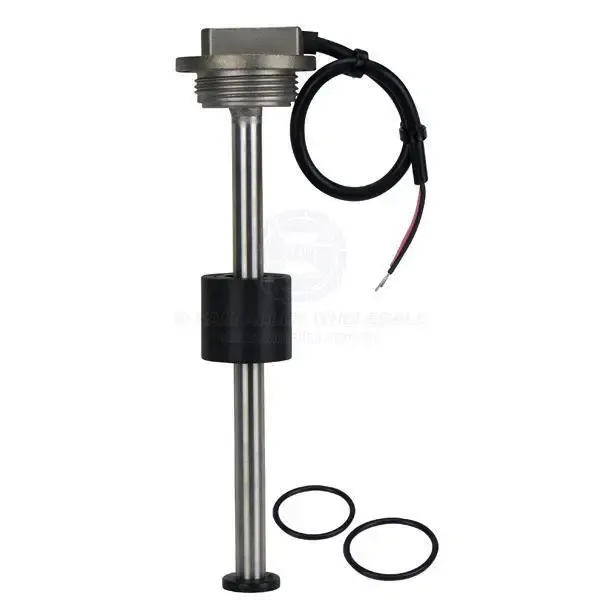

Product Overview

• Utilising magnetic field to control the reed on-off switch, the sender features a long service life and protection against vibration.
• Output signal: 240~33 Ohms.
• 316G stainless steel main body.
• 1-1/4 inch BSP twist-on thread assembly.
• Operating temperature: -40 Degree Celsius - +85 Degree Celsius.
• Protection Rating: IP67.
• Mounting:
38mm x 2.6mm O-ring.
43mm x 3.5mm O-ring.
• 250mm tinned wire with PVC cover.
• 33mm float diameter.

Part No. 41475
Length 475mm
Mount Style 1-1/4 inch BSP
Mount Flange Dia. 54mm
OHMS 240-33

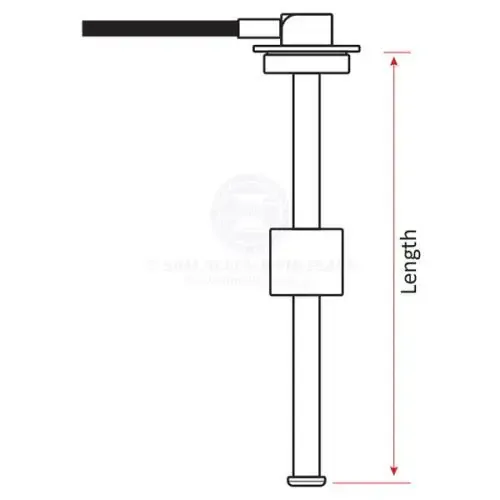

Note Special sizes available to order. Length is measured from underside of the flange to the base of the shaft.



SKU SAW-41475
Brand KUS
