Product Overview

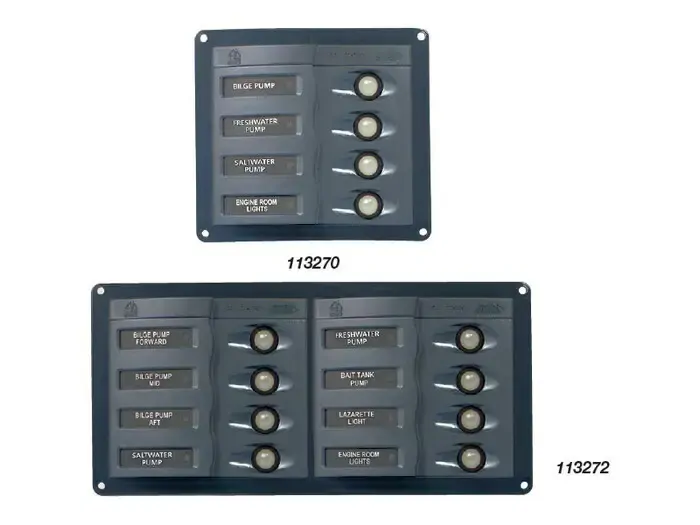

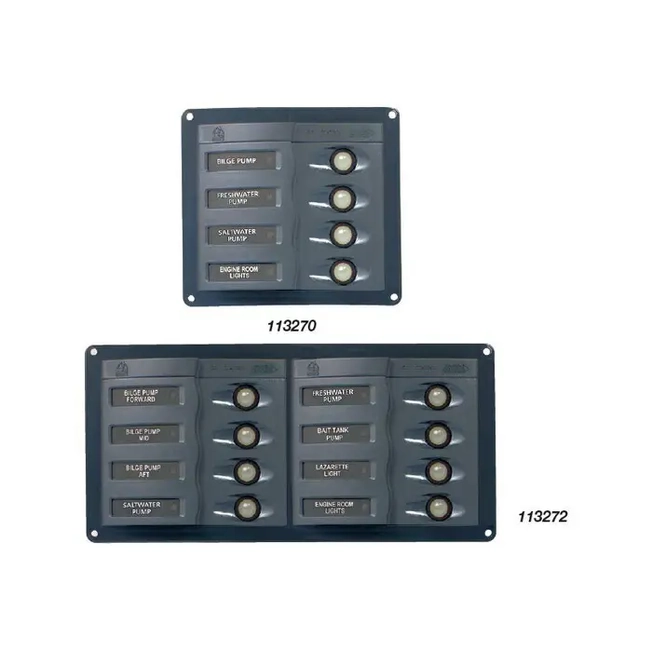

BEP Systems in Operation Panels Available with four or eight 10mm red LEDs indicating important 'systems in operation' information (pumps, engine room, lights etc). Ideally suited for flybridge or remote dash position. Back lighting on labels. 113271 include alarm and mute switch. Four gang panel supplied with 113700 label set. Eight gang panel supplied with 113700 and 113704 label sets, refer pages 156 and 157. Features: - 40mm intrusions and 3 r/h mount screws BLA Code Volts LEDs Dimension wxh mm Cut Out mm Alarm & Mute 113270 12-24 4 127 x 115 107 x 95 No 113271 12-24 3 + 1 switch 127 x 115 107 x 95 Yes 113272 12-24 8 239 x 115 219 x 95 No Drop resistors required for LEDs in 24 volt installations. 113461 Drop resistor BEP 8 way suits 113272
SKU BLA-113270
Brand BEP
