Mastervolt Solar Chargemaster Scm-25
Mastervolt Solar Chargemaster Scm-25
BLA-110783
$332.41 $349.90
$17.49 off RRP of $349.90
Product Overview
Mastervolt MPPT Solar Chargers
Charges up to 30% faster with the same number of solar panels.
Mastervolt solar charge regulators can be used flexibly to complement your energy system, or in places where no electricity is available.
Features:
- Fewer cables, quick installation and lower losses
- Suitable for all solar panels, including the inexpensive 60-cell panels
- Suitable for humid environments (IP23)
- Large, clear LCD display
- Audible signal (SCM25 MPPT)
- Monitoring and control via MasterBus (SCM60 MPPT-MB)
- High efficiency: your batteries are charged quickly
- Capacity for solar panel configurations of up to 3600 Wp
- Suitable for AGM, gel, wet and Mastervolt Lithium Ion batteries
- Battery temperature sensor for long lifespan
- Automatic 12 V/24 V/48 V detection SCM25 12/24 volt only
- Switchable output
- LCD display
- Fully protected against overtemperature, overload, high/low battery voltage, high/low PV voltage, short circuit and reverse polarity
Specifications:
BLA Code 110784

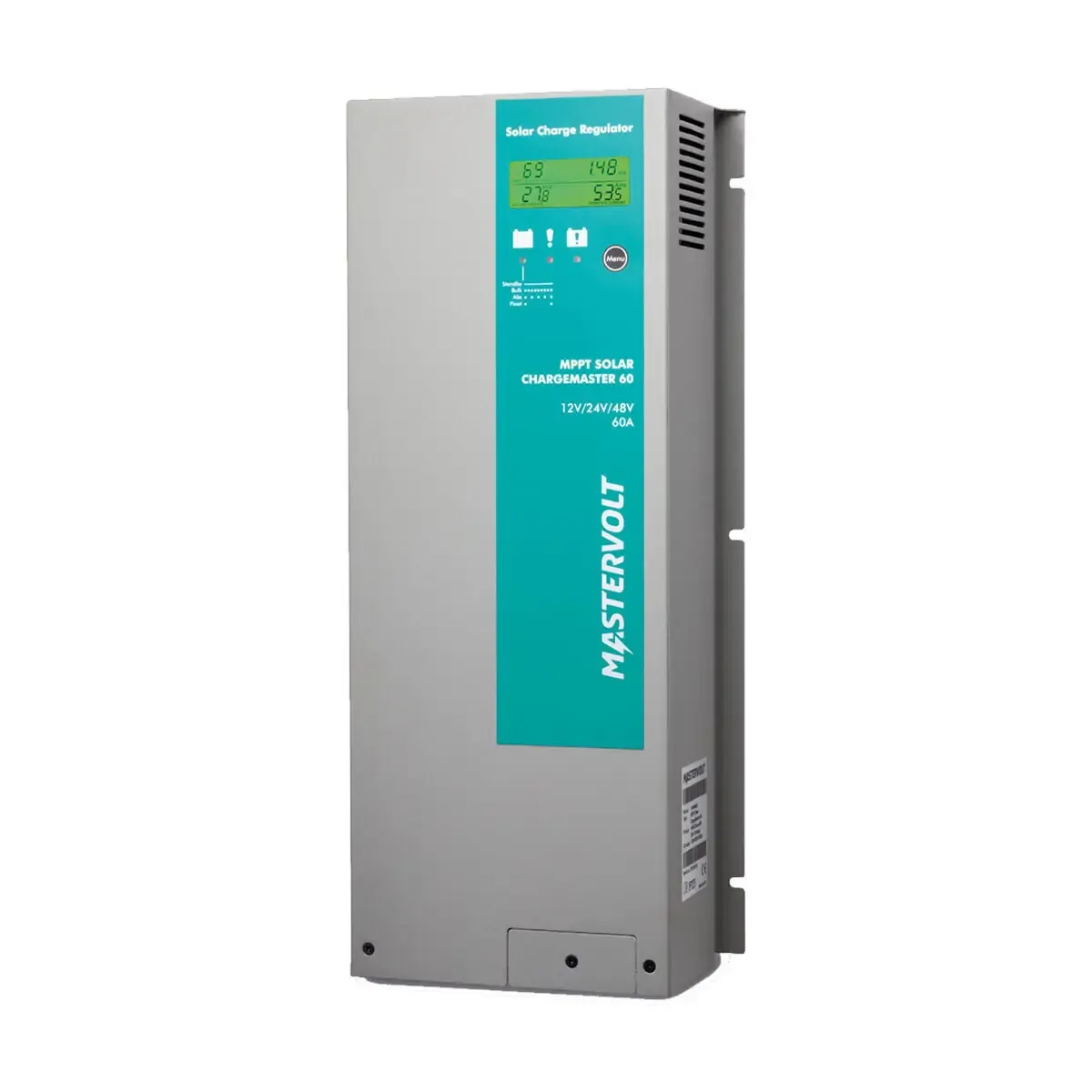

Description Mastervolt solar chargemaster scm-60
Features:
Buzzer NO
Communication MasterBus
Lcd Display Features Backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting
Protections Over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients
PV (Solar) Input:
Nom. PV Current 50 A (at 40 °C)
PV Start Voltage (12/24 V) n.a
PV Start Voltage (12/24/48 V) 15 V/27 V/51 V
Nom. PV Voltage (12 V) 13.2 - 115 V
Nom. PV Voltage (24 V) 26.4 - 115 V
Nom. PV Voltage (48 V) 52.8 - 115 V
Max. PV Voltage At Tmin 145 V
Max. PV Power (12 V) 900 Wp
Max. PV Power (24 V) 1800 Wp
Max. PV Power (48 V) 3600 Wp
Max. Efficiency > 98%
Static Mpp Efficiency 99.9%
DC Output:
System Voltage 12 V/24 V/48 V auto select
Battery Type AGM, gel, wet, Lithium Ion
Battery Temp. Sensor Yes
Lithium Ion Protection Yes, via via Masterbus connection
Max. Charging Current 60 A (at 40 °C)
Switchable Output (Max. Current) n.a.
Energy Consumption (Night) <1 mA
General:
Technology MPPT
Max. Cable Size 10 mm² Litz wire
Dimensions, H x W x D mm 398 x 168 x 104
Weight 5.5 kg
Temperature Range -20 to 55 °C
Humidity 95% non-condensing
Protection Degree IP23
Cooling Passive
Grounding (-) terminal
Accessories:
110595 USB Interface for solar Chargemaster
| SKU | BLA-110784 |
| Brand | Mastervolt |
