ITEM DESCRIPTION:
Built-in auto retract.
12/24 volt.
LED indicator displays the exact position of your trim tabs, Auto brightness adjusting.
Self check feature.
Waterproof key pad and solid state control box with waterproof plug and play Deutsch connectors, backlit.
36" power pigtail for control box.

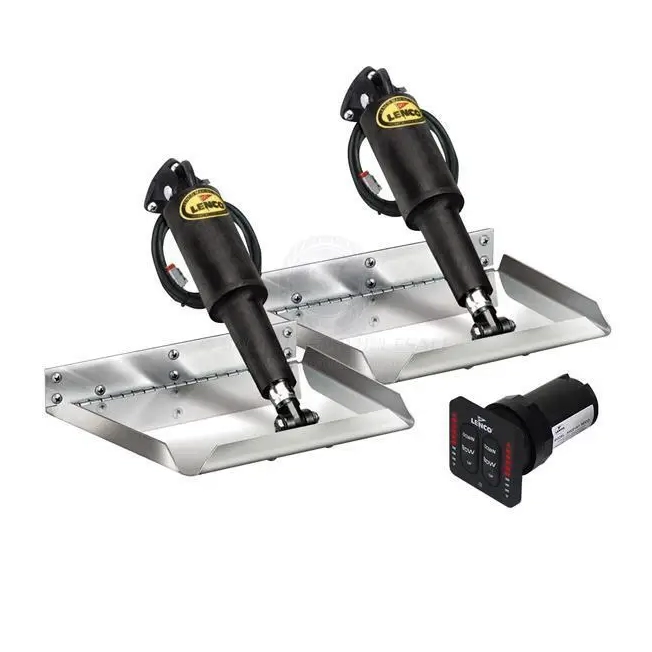

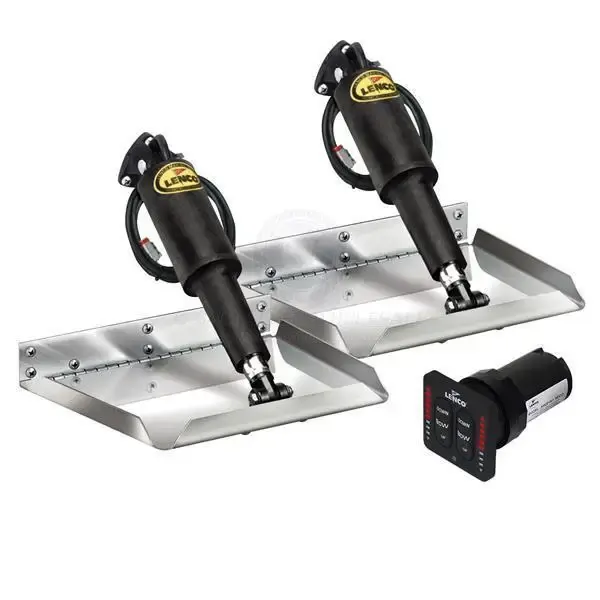

Edge Mount Trim Tab Kit:
2 x Edge Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with 1" turned up edges and a 5 degree taper on both sides to the trailing edge and 1/8" diameter hinge pin.
2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
2 x actuator extension wiring harness (6m) with Deutsch connectors.
1 x set of stainless steel fasteners.
2 x upper mounting bracket with gland seal.
2 x lower mounting bracket.
Lenco owner?s installation manual.
3 Year Warranty (Recreational Use). 14630

PART NO. 55497

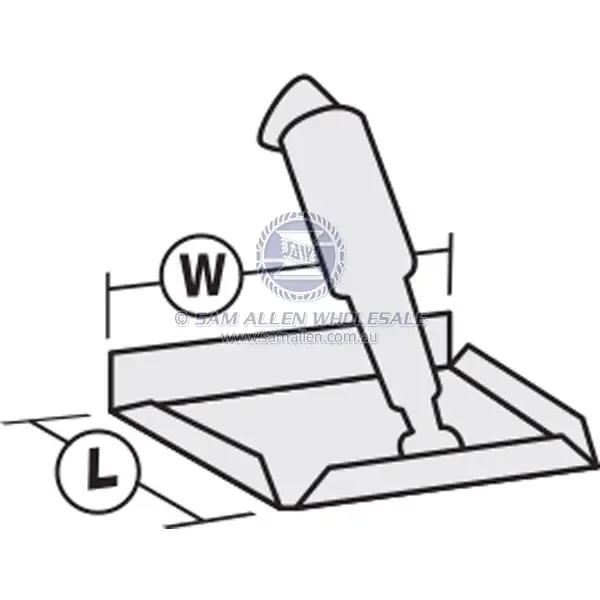

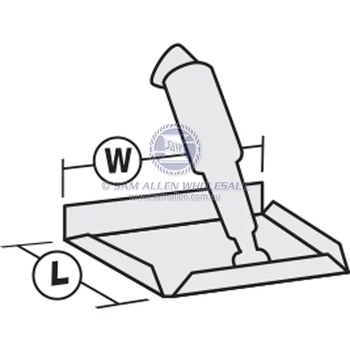

LENGTH: 12" (305mm)
WIDTH: 12" (305mm)

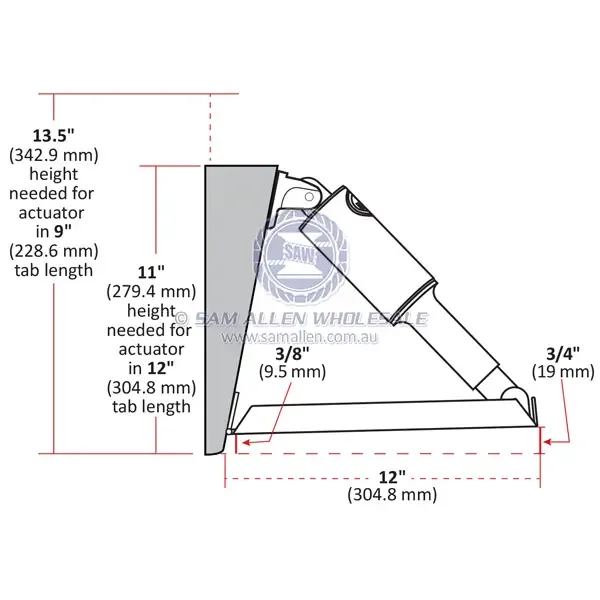

Min. Transom Height: 279mm
Approx. Boat Length: 5.2Mtr - 9.2Mtr
Finish: Electro Polished
Switch Kit: LED Indicator
Volts: 12V
Hinge Height: 51mm
Note: 24 Volt Option Available.
*All standard mount trim tabs kits are supplied in retail packages.


SKU SAW-55497
Brand Lenco
