Product Overview
Deck Fittings & Hardware
ITEM DESCRIPTION:
Built-in auto retract.
12/24 volt.
LED indicator displays the exact position of your trim tabs, Auto brightness adjusting.
Self check feature.
Waterproof key pad and solid state control box with waterproof plug and play Deutsch connectors, backlit.
36" power pigtail for control box.

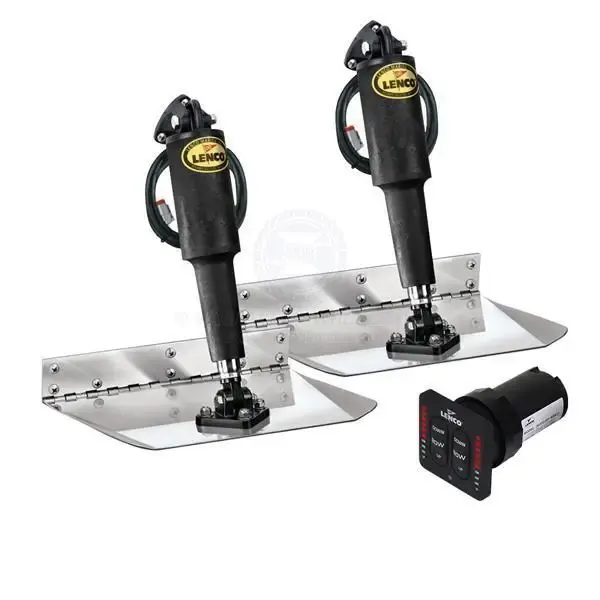

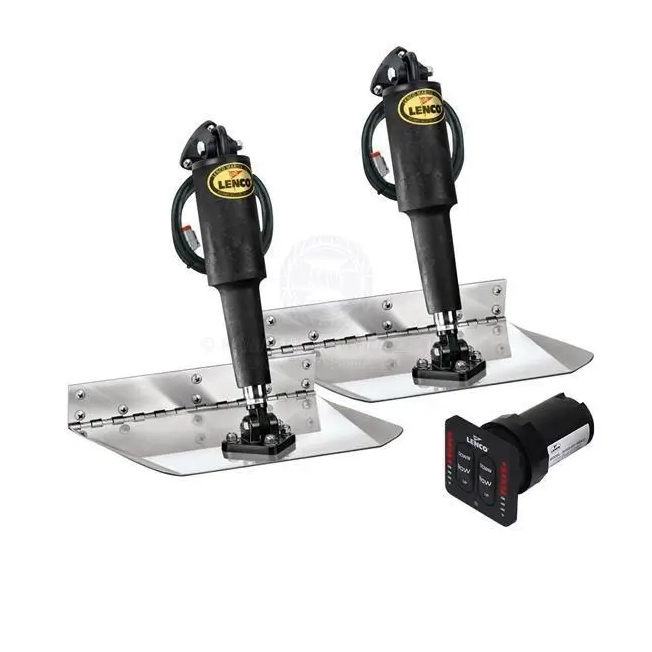

Standard Mount Trim Tab Kits:
2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8" flared trailing edge and 1/8" diameter hinge pin.
2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
2 x actuator extension wiring harness (6m) with Deutsch connectors.
1 x set of stainless steel fasteners.
2 x upper mounting bracket with gland seal.
2 x lower mounting bracket.
Lenco owner?s installation manual.
3 Year Warranty (Recreational Use). 14640
PART NO. 55493

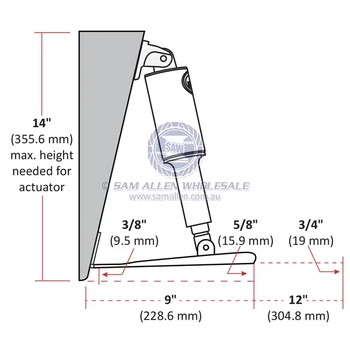

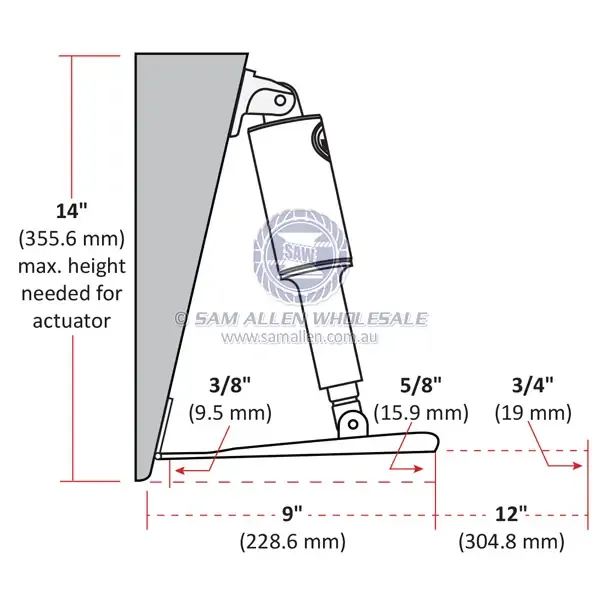

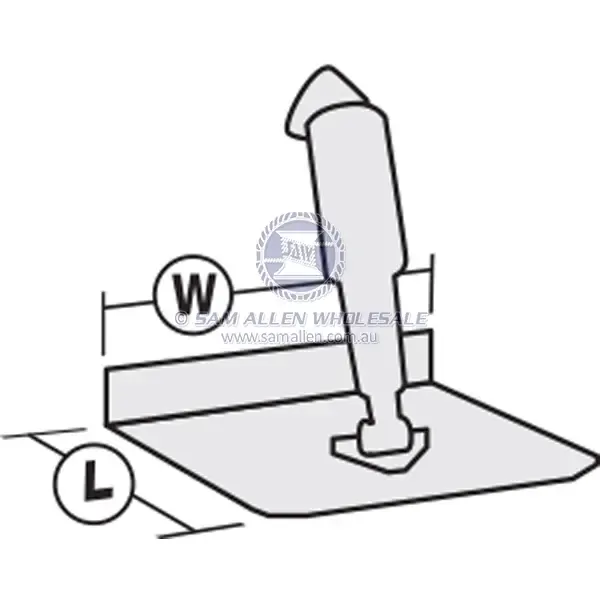

LENGTH: 9" (228mm)
WIDTH: 9" (228mm)
Min. Transom Height: 356mm
Approx. Boat Length: 4.3Mtr - 5.5Mtr
Finish: Electro Polished
Switch Kit: LED Indicator
Volts: 12V
Hinge Height: 51mm
Note: 24 Volt Option Available.
*All standard mount trim tabs kits are supplied in retail packages.
| SKU | SAW-55493 |
| Brand | Lenco |
