ITEM DESCRIPTION:

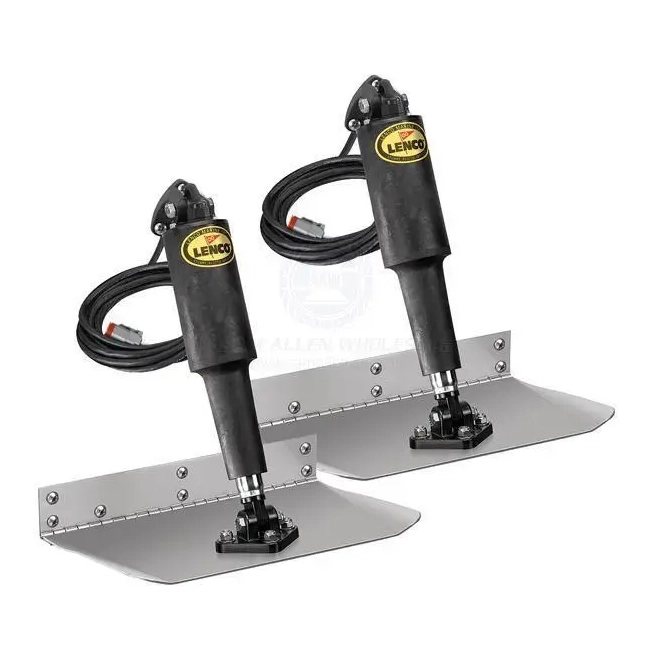

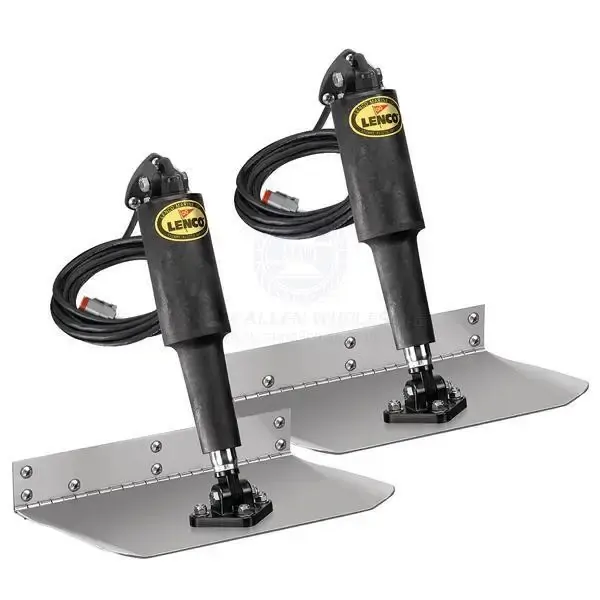

Standard Mount Trim Tab Kits:
2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8" flared trailing edge and 1/8" diameter hinge pin.
2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
2 x actuator extension wiring harness (6m) with Deutsch connectors.
1 x set of stainless steel fasteners.
2 x upper mounting bracket with gland seal.
2 x lower mounting bracket.
Lenco owner?s installation manual.
3 Year Warranty (Recreational Use). 14642

PART NO. 55430
LENGTH: 9" (228mm)
WIDTH: 9" (228mm)

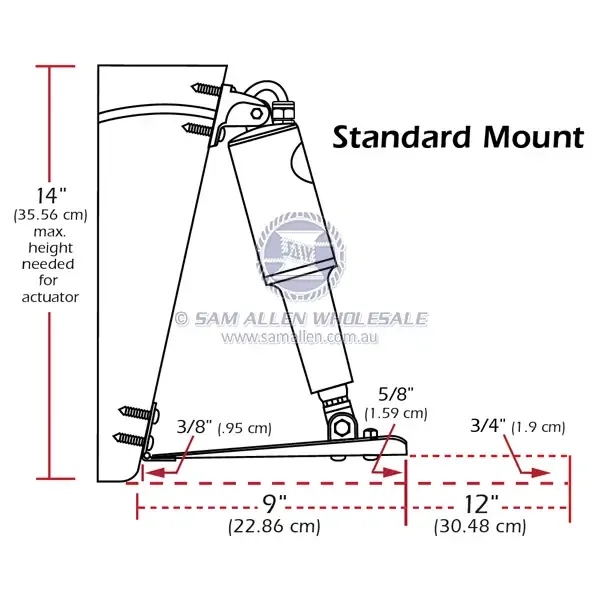

Min. Transom Height: 356mm
Approx. Boat Length: 4.3Mtr - 5.5Mtr
Finish: Matte
Switch Kit: Not Include
Volts: 12V
Hinge Height: 51mm
Note: 24 Volt Option Available.
*All standard mount trim tabs kits are supplied in retail packages.


SKU SAW-55430
Brand Lenco
