Product Overview


Deck Fittings & Hardware

ITEM DESCRIPTION:

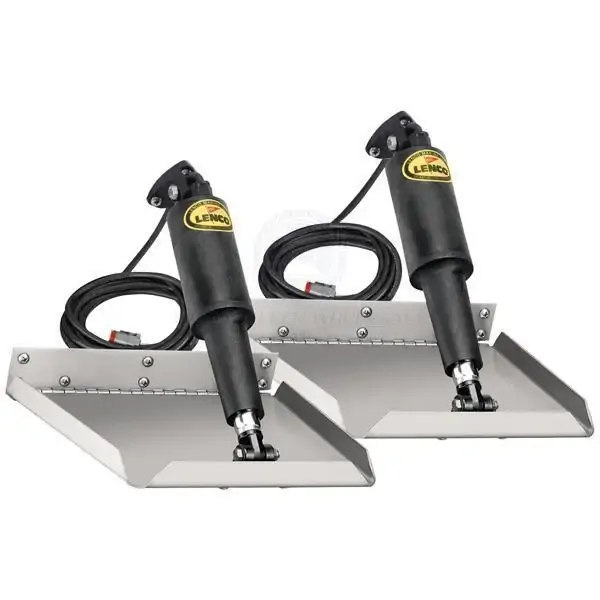

Edge Mount Trim Tab Kit:
2 x Edge Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with 1" turned up edges and a 5 degree taper on both sides to the trailing edge and 1/8" diameter hinge pin.
2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
2 x actuator extension wiring harness (6m) with Deutsch connectors.
1 x set of stainless steel fasteners.
2 x upper mounting bracket with gland seal.
2 x lower mounting bracket.
Lenco owner?s installation manual.
3 Year Warranty (Recreational Use). 14632

PART NO. 55460

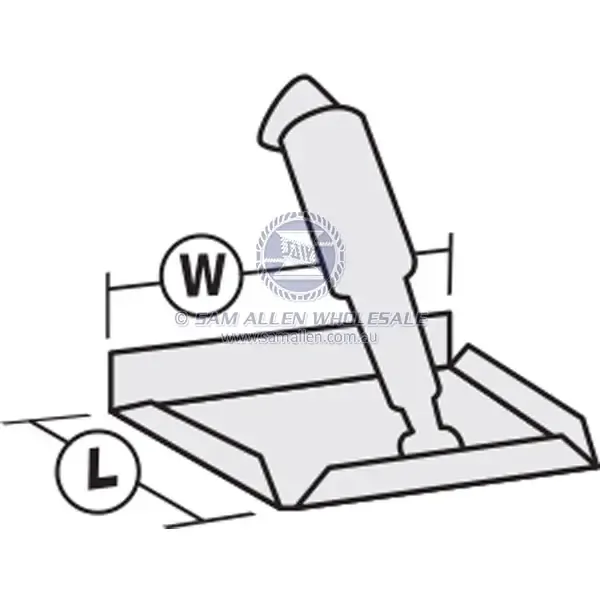

LENGTH: 12" (305mm)
WIDTH: 9" (228mm)
Min. Transom Height: 279mm
Approx. Boat Length: 4.2Mtr - 5.4Mtr
Finish: Matte
Switch Kit: Not Include
Volts: 12V
Hinge Height: 51mm
Note: 24 Volt Option Available.
*All standard mount trim tabs kits are supplied in retail packages.


SKU SAW-55460
Brand Lenco
