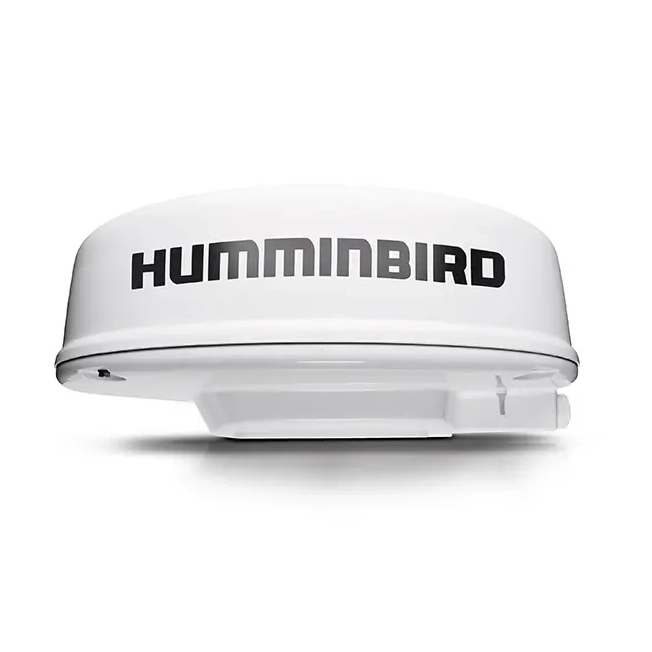

Humminbird® CHIRP Radar Introducing the next generation of marine radar: new Humminbird CHIRP Radar, featuring CHIRP pulse compression. Setting a new standard for compact solid state radar, this Humminbird technology delivers superior radar imaging on both long and extremely short ranges. An energy efficient, lightweight design provides safe radiated emissions and substantially reduced power consumption. See things more clearly with Humminbird CHIRP Radar. Shorelines, buoys, other boats and weather - watch it all take shape on your fishfinder for maximum safety and a competitive edge. Features: - Superior Radar Imaging - Humminbird's advanced MARPA target separation displays targets with unsurpassed resolution and quality - CHIRP Pulse Compression - Along with excellent short-range detection and detail, CHIRP Pulse compression ensures more energy reaches each target for superior imaging at long ranges - Small Target Detection - Humminbird's CHIRP Pulse compression identifies small or weak targets, even while positioned close to strong returns - Immediate Awareness - Our solid-state technology is ready to use in seconds, without a length warm-up period BLA Code 103192 Specifications Antenna Dimension 21" Enclosed Dome Antenna Type Patch Array Peak Power Output 20W Transmit Frequency 9354 to 9446 MHz Beamwidth (Nominal) 4.9° Horizontal, 20° Vertical Input Voltage 12 or 24 Vdc (Min: 10.8V; Max 31.2V) Networking Ethernet Power Consumption Transmit mode 17W; standby mode 7W; sleep mode 2W Max. Range Scale 1/16 to 24 nautical miles Duplexer Circulator Pulse Widths (3 dB) 40 ns to 14.7 ?s CHIRP Lengths 40 ns to 20 ?s CHIRP Bandwidth Up to 32 MHz IF Bandwidth 26 MHz Noise Less than 4 dB Polarisation Horizontal Waterproofing IPX6 Weight 5.6kg (12.3 lb)

SKU	BLA-103192
Brand	Humminbird
