Product Overview

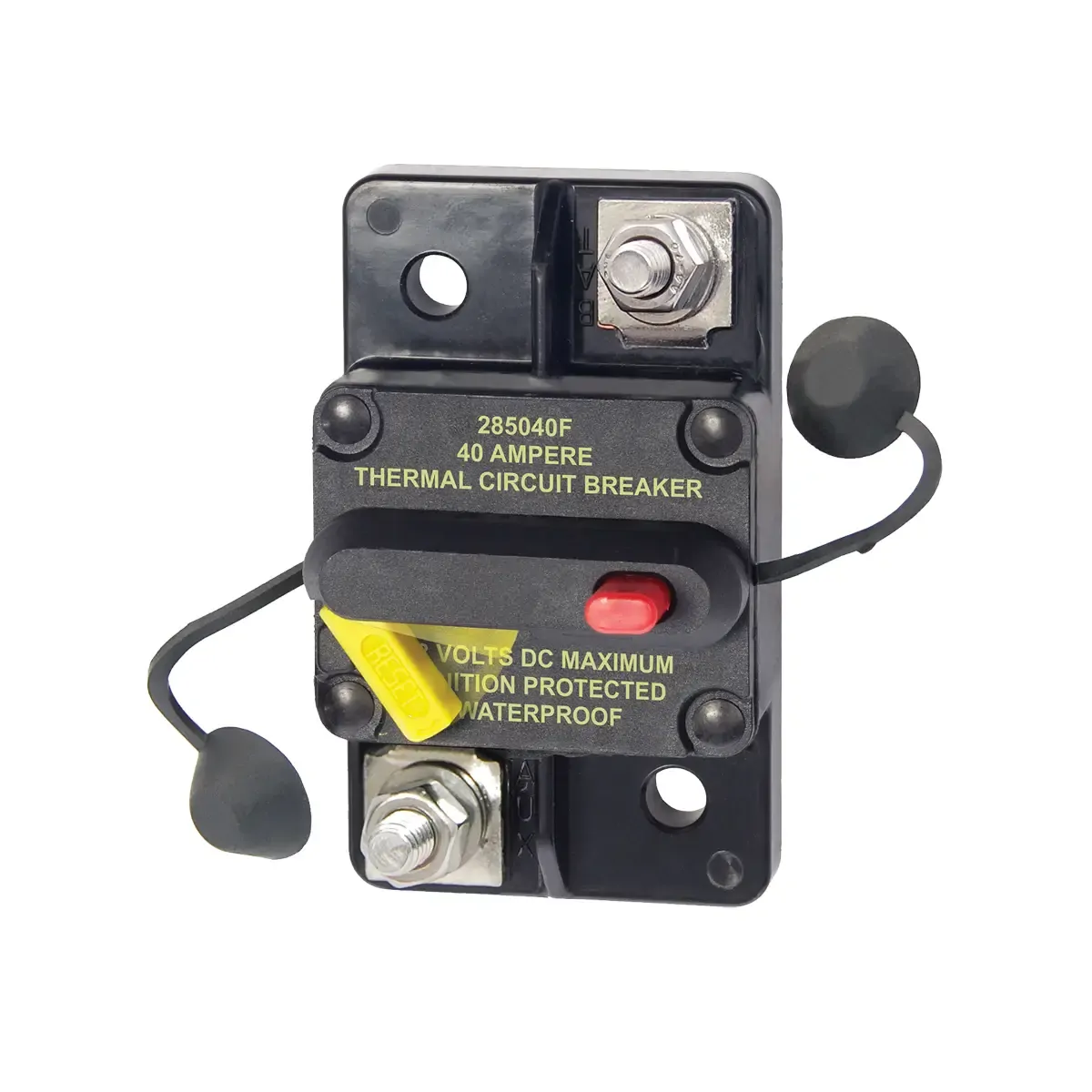

Blue Sea Systems 285 Series Circuit Breakers Provides circuit protection for 25-150amp loads when switching and circuit protection are both required. - Visible yellow reset lever shows open condition - Trip-free design cannot be held closed after trip - Drop in replacement for 185 Series Circuit Breakers - 3,000A AIC for medium battery banks Specifications - Interrupting Capacity 3,000A @ 48V DC? - Voltage Max. Operating 48V DC - Temperature Min. Operating -40°C - Temperature Max. Operating 85°C - Type Thermal - Class Type III ? Switchable/Manual Reset ? Trip Free - Terminal Stud M6 (accepts 1/4" Ring Terminal) - Terminal Stud Torque 50 in-lb (7.9 Nm) - Mounting Hole Accepts 1/4" screw (M6) BLA Code Bulk BLA Code BLA Code Amps Surface Mount Surface Mount Panel Mount BS-7180 BS-7080 25 BS-7181 BS-7081 30 BS-7182 BS-7182B BS-7082 40 BS-7183 BS-7183B BS-7083 50 BS-7184 BS-7184B BS-7084 60 BS-7185 BS-7085 70 BS-7186 BS-7186B BS-7086 80 BS-7187 BS-7187B BS-7087 100 BS-7188 BS-7088 120 BS-7189 BS-7089 150
SKU BLA-BS-7182B
Brand Blue Sea Systems
