$16.90
Product Overview

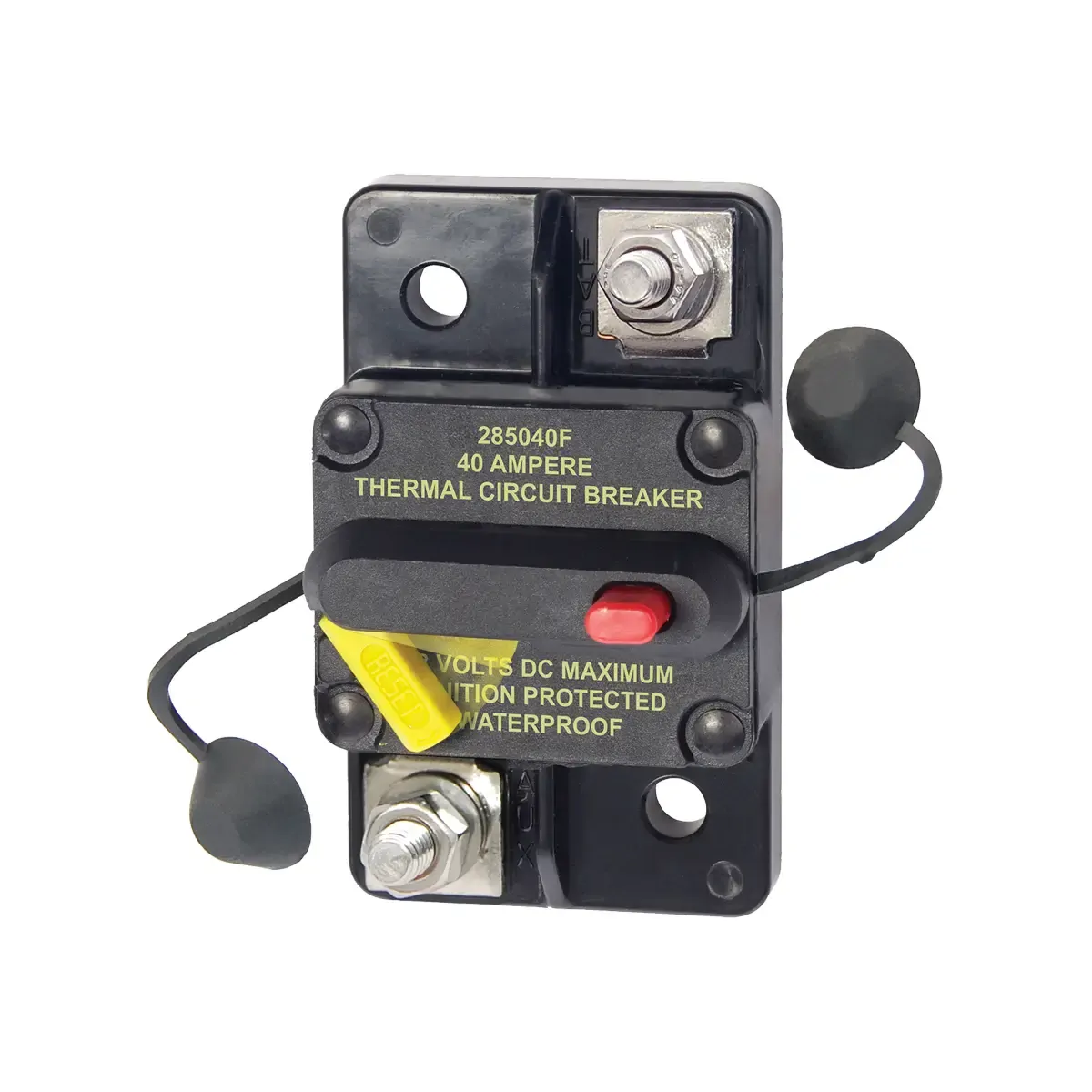

Blue Sea Systems 285 Series Circuit Breakers
Provides circuit protection for 25-150amp loads when switching and circuit protection are both required.
- Visible yellow reset lever shows open condition
- Trip-free design cannot be held closed after trip
- Drop in replacement for 185 Series Circuit Breakers
- 3,000A AIC for medium battery banks
Specifications
- Interrupting Capacity 3,000A @ 48V DC?
- Voltage Max. Operating 48V DC
- Temperature Min. Operating -40°C
- Temperature Max. Operating 85°C
- Type Thermal
- Class Type III ? Switchable/Manual Reset ? Trip Free
- Terminal Stud M6 (accepts 1/4" Ring Terminal)
- Terminal Stud Torque 50 in-lb (7.9 Nm)
- Mounting Hole Accepts 1/4" screw (M6)
BLA Code Bulk BLA Code BLA Code Amps
Surface Mount Surface Mount Panel Mount
BS-7180 BS-7080 25
BS-7181 BS-7081 30
BS-7182 BS-7182B BS-7082 40
BS-7183 BS-7183B BS-7083 50
BS-7184 BS-7184B BS-7084 60
BS-7185 BS-7085 70
BS-7186 BS-7186B BS-7086 80
BS-7187 BS-7187B BS-7087 100
BS-7188 BS-7088 120
BS-7189 BS-7089 150
| SKU | BLA-BS-7182 |
| Brand | Blue Sea Systems |
