Product Overview

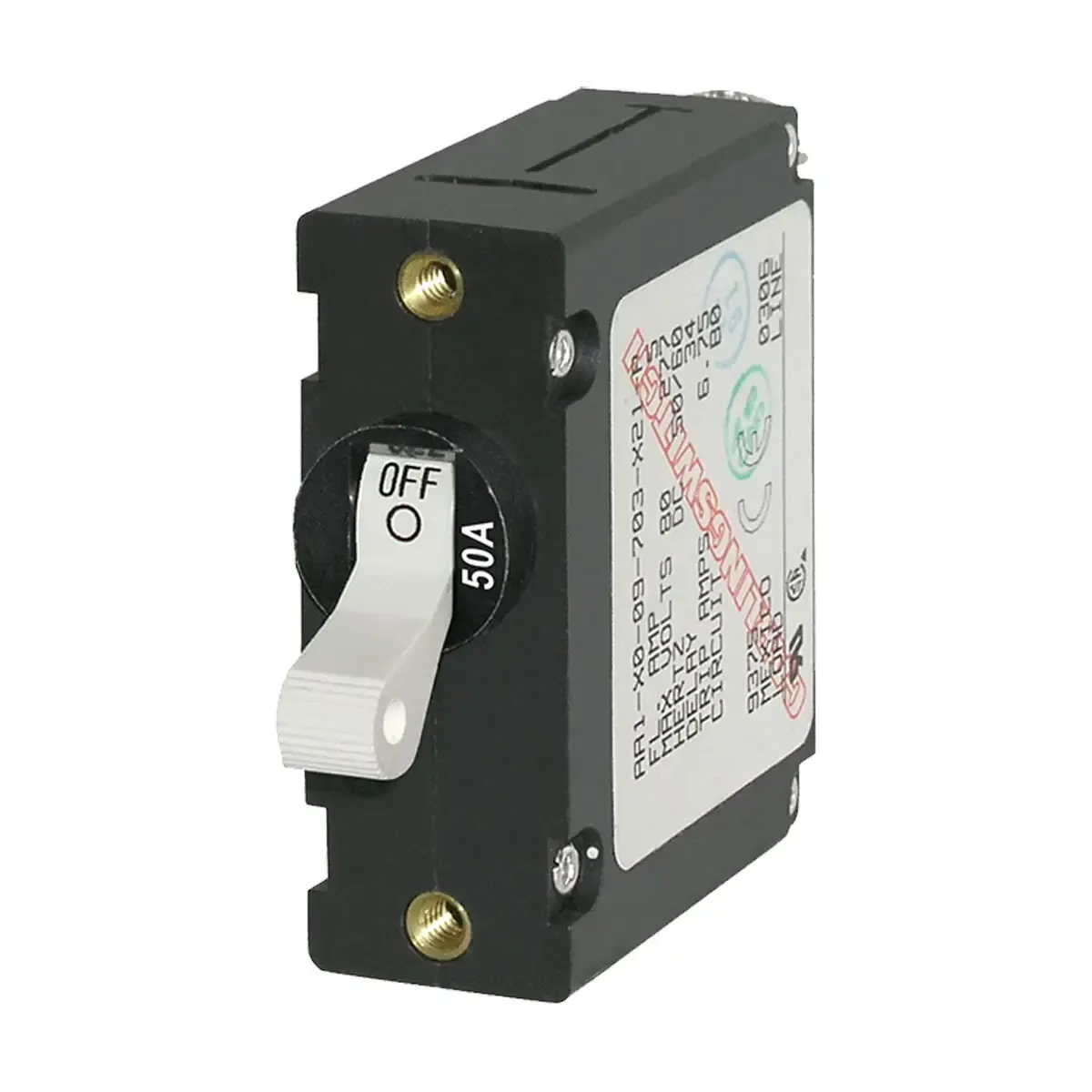

Blue Sea Systems A-Series Toggle Circuit Breakers Combines switching and circuit protection into a single device. - The standard circuit breaker for Blue Sea Systems Traditional Metal Power Distribution Panels - Single pole is frequently used for AC or DC Branch circuit protection - Double pole is typically used for AC Main circuit protection - Trip Free ? cannot be held closed after trip Specifications: - Voltage Nominal Operating 120/240V AC - Operating Temperature -40-85° C - Switching Cycles 1000 @ rated amps and volts - Terminal Screw- #10-32 Single Pole Circuit Breakers: BLA Code Colour Amps Pole Max. DC Volts BS-7202 White 5 1 65 BS-7204 Black 10 1 65 BS-7205 Red 10 1 65 BS-7206 White 10 1 65 BS-7208 Black 15 1 32 BS-7210 White 15 1 65 BS-7212 Black 20 1 65 BS-7213 Red 20 1 32 BS-7214 White 20 1 65 BS-7216 Black 25 1 65 BLA Code Colour Amps Pole Max. DC Volts BS-7218 White 25 1 65 BS-7220 Black 30 1 32 BS-7221 Red 30 1 65 BS-7222 White 30 1 65 BS-7224 Black 40 1 65 BS-7226 White 40 1 32 BS-7228 Black 50 1 32 BS-7229 Red 50 1 65 BS-7230 White 50 1 32 BS-7299 White 8 5 65 Double Pole Circuit Breakers: BLA Code Colour Amps Pole Max. DC Volts BS-7233 White 10 5 65 BS-7234 Black 15 5 32 BS-7242 White 50 5 65 BS-7260 White 20 5 32
SKU BLA-BS-7230
Brand Blue Sea Systems
