$218.41 $229.90
$11.49 off RRP of $229.90
Product Overview

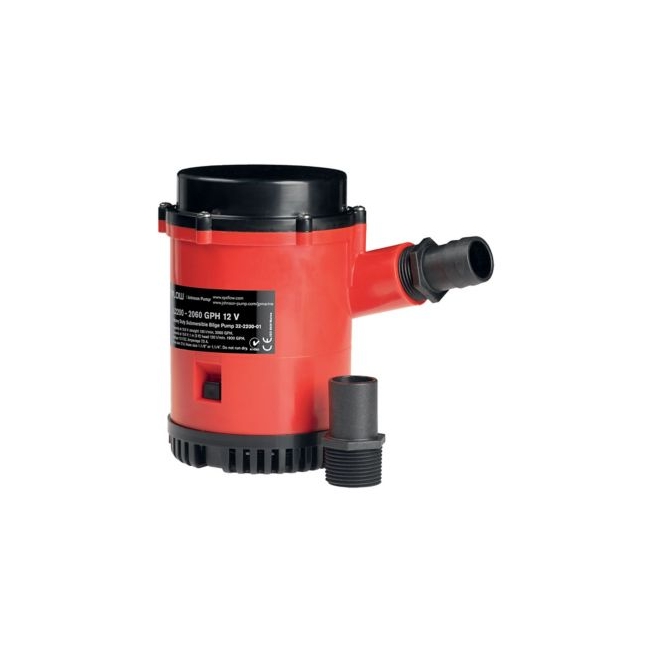

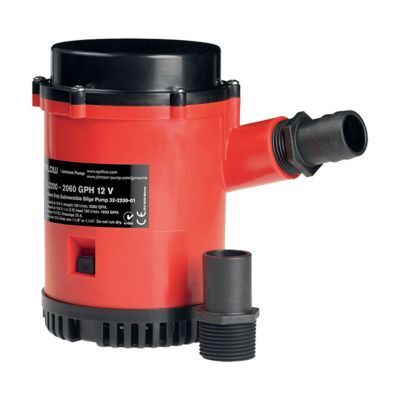

SPX Heavy Duty Bilge Pump
Designed to meet and exceed the tough demands of commercial and recreational duty.
This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life.
The L2200 motor is sealed off by a mechanical seal design, while the L1600 model has lipseal.
The impeller is carefully designed and tested to maximise head and flow.
The L4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design.
Universal base plate and a choice of 1½" or 2" ports makes for a simple installation. Removable check valve included.
Specifications:
- Shaft: 2343 grade stainless steel
- Wire size: 1.3 mm2 ? 16 GA
- Wire length: 1.8 m
- Max. ø: 108
BLA Code Model Capacity @1m Head Capacity Open Flow Power Fuse Size Max. Length Height Outlet Dia.
L/m gph L/m gph v amps mm mm mm
131806 1600GPH 98 1550 100 1600 12 7 10A 1.3 149 28/32
131808 1600GPH 98 1550 100 1600 24 3.5 6A 1.3 149 28/32
131818 2200GPH 120 1900 130 2060 12 7.5 12A 2.7 177 28/32
131820 2200GPH 120 1900 130 2060 24 4.5 6A 2.7 177 28/32
131823 4000GPH 164 2600 252 4000 12 15 25A 2.45 216 38/50
131824 4000GPH 164 2600 252 4000 24 7.5 15A 2.45 216 38/50
| SKU | BLA-131818 |
| Brand | SPX Johnson Pump |
