Product Overview

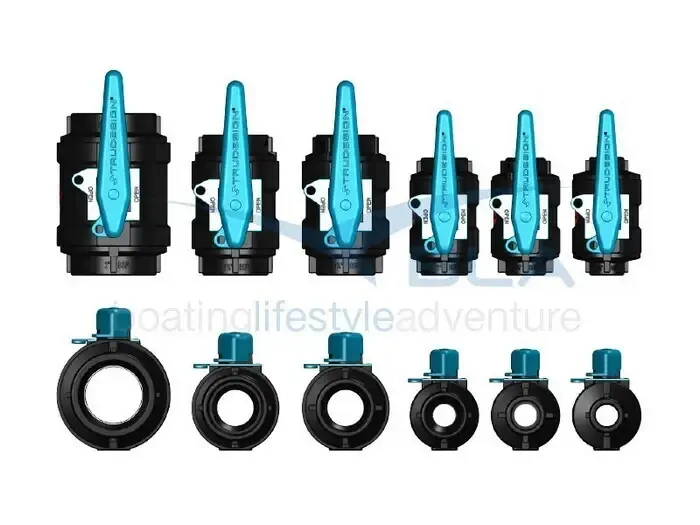

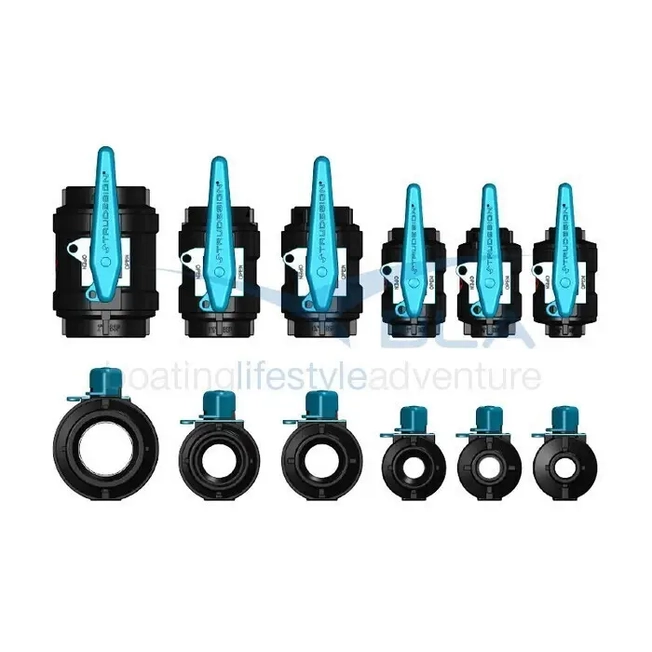

TruDesign® Ball Valves
Designed and made in New Zealand for use in marine applications above and below the water line, our Ball Valves comply to IMCI to ISO standard 9093-2, and are ideal for controlling inlet and outlet water requirements.
The body of the Ball Valve is manufactured in glass reinforced nylon composite with high impact and tensile strength resulting in a light weight unit, free from corrosion and electrolysis issues. The ball and sealing rings utilise a PTFE polymer to ensure a smooth action, and continuous ease of operation over many years.
The Ball Valve incorporates BSP threads and a handle that can be locked in the closed position for use on toilet waste outlets.
BLA Code Thread Size Internal Diameter Length Width Height Handle Radius
BSP mm in mm mm mm mm
138600 ½" 19 ¾ 103 61 87 93
138602 ¾" 19 ¾ 103 61 87 93
138604 1" 19 ¾ 103 61 87 93
138605 1¼" 32 1¼ 169 72 102 108
138606 1½" 32 1¼ 169 72 102 108
138607 2" 52 2 178 95 125 108
| SKU | BLA-138600 |
| Brand | TruDesign |
